Collection: Bearings - Single Row Ball - Flanged

Bearings (With Images)

Single Row Ball

Chamfered Edges
Flanged

841 Products in this selection

This is a combined category of Flanged Single Row Ball Bearings.
Use the filters in the table below, or the category tree above to refine the selection. To order any item, simply click the part number for a full product page, then add to your cart.

Additional resources:
Tolerances
Standard Bearings PDF Catalogue
Shafting

A more concise listing may be found on the Smallparts store at Bearings - Single Row Ball - Flanged. Smallparts promote the most popular MBA products.

ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Flange Diameter (DF)	Flange Width (BF)	Indicative Image
ID (d) 4.000 mm + 0.000 / - 0.004 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.004 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.040 _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: P4 Category: Bearings - Single Row Ball - Flanged - High Precision

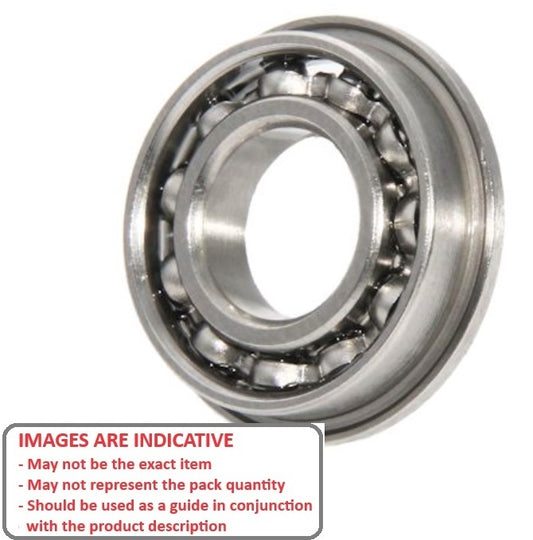

Part Number: SF624-MC34-UP4-AF12 Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d)	OD (D)	Width (B)	Inner Ring Width (Bn)	Indicative Image
ID (d) 4.000 mm + 0.000 / - 0.004 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.004 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.040 _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: P4 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SF624-MC34-UP4-AF12 Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.000 mm _{(0.157 in.)}	OD (D) 13.000 mm _{(0.512 in.)}	Width (B) 5.000 mm _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: Economy Category: Bearings - Single Row Ball - Flanged - Precision

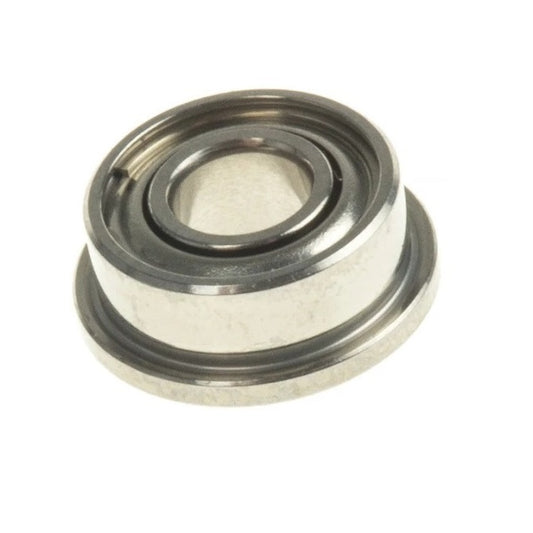

Part Number: SF624-ZZ-ECO Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Each
ID (d) 4.000 mm _{(0.157 in.)}	OD (D) 13.000 mm _{(0.512 in.)}	Width (B) 5.000 mm _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: Economy Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF624-ZZ-ECO Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Each View the product page first if you are unsure.
SF624-ZZ-ECO --- Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C SF624-ZZ-ECO --- Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Regular price $10.32 AUD Regular price Sale price $10.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.0075 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision

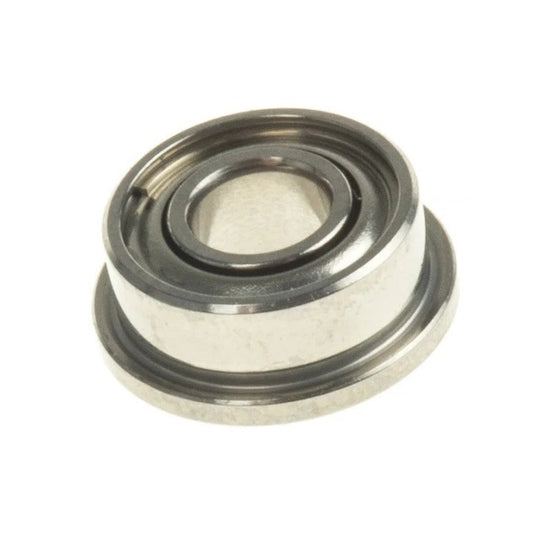

Part Number: SF624-ZZ-MC3 Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C 26 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.46 AUD Regular price ~~$11.95 AUD~~ Sale price $4.46 AUD Unit price per Each
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.0075 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF624-ZZ-MC3 Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C 26 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.46 AUD Regular price ~~$11.95 AUD~~ Sale price $4.46 AUD Unit price per Each
SF624-ZZ-MC3 --- Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Sale SF624-ZZ-MC3 --- Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Regular price $4.46 AUD Regular price ~~$11.95 AUD~~ Sale price $4.46 AUD Unit price per 26 Available Now Sale
ID (d) 4.000 mm + 0.000 / - 0.004 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.004 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.040 _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: P4 Category: Bearings - Single Row Ball - Flanged - High Precision

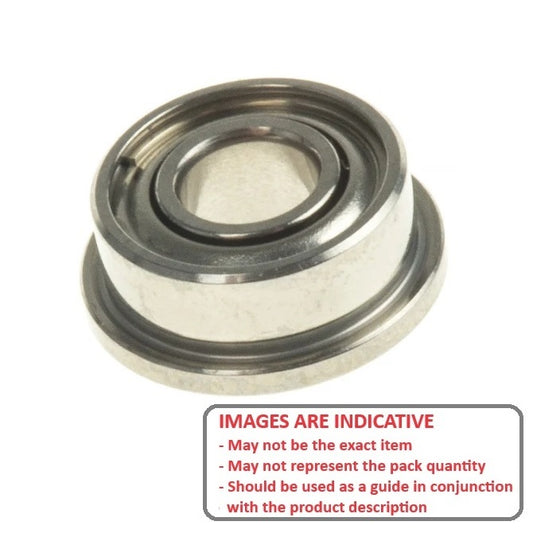

Part Number: SF624-ZZS-MC34-UP4-AF12 Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.000 mm + 0.000 / - 0.004 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.004 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.040 _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: P4 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SF624-ZZS-MC34-UP4-AF12 Single Row Ball Bearings - 4x13x5 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.0075 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-ZZ-MC3 (50 Pcs) Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $543.77 AUD Regular price Sale price $543.77 AUD Unit price per Per 50
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.0075 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-ZZ-MC3 (50 Pcs) Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $543.77 AUD Regular price Sale price $543.77 AUD Unit price per Per 50 View the product page first if you are unsure.
F624-ZZ-MC3 (50 Pcs) --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 F624-ZZ-MC3 (50 Pcs) --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Regular price $543.77 AUD Regular price Sale price $543.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.007 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.007 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.120 _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Chrome Steel SAE 52100 Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-ZZ-MC3-JP6 (50 Pcs) Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $543.77 AUD Regular price Sale price $543.77 AUD Unit price per Per 50
ID (d) 4.000 mm + 0.000 / - 0.007 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.007 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.120 _{(0.197 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-ZZ-MC3-JP6 (50 Pcs) Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $543.77 AUD Regular price Sale price $543.77 AUD Unit price per Per 50 View the product page first if you are unsure.
F624-ZZ-MC3-JP6 (50 Pcs) --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 F624-ZZ-MC3-JP6 (50 Pcs) --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Regular price $543.77 AUD Regular price Sale price $543.77 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm _{(0.157 in.)}	OD (D) 13.000 mm _{(0.512 in.)}	Width (B) 5.000 mm _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Chrome Steel SAE 52100 Precision Grade: Economy Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-ZZ-ECO Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each
ID (d) 4.000 mm _{(0.157 in.)}	OD (D) 13.000 mm _{(0.512 in.)}	Width (B) 5.000 mm _{(0.197 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: Economy Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-ZZ-ECO Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Sun, Jun 15, 2025 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Each View the product page first if you are unsure.
F624-ZZ-ECO --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 F624-ZZ-ECO --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Regular price $8.50 AUD Regular price Sale price $8.50 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.0075 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}		Flange Diameter (DF) 15.000 mm	Flange Width (BF) 1.000 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision

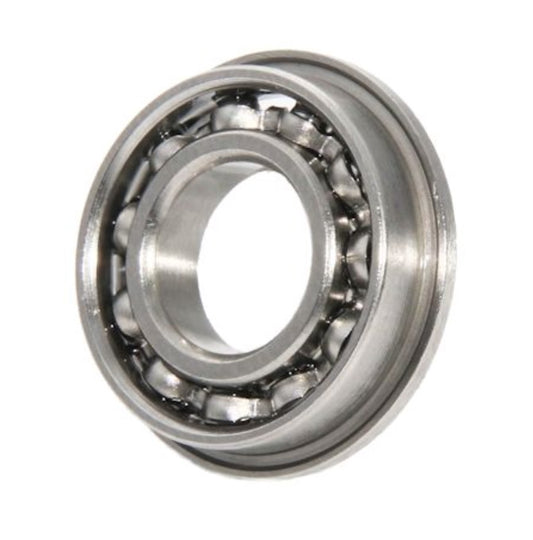

Part Number: F624-MC3 Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $93.32 AUD Regular price Sale price $93.32 AUD Unit price per Each
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 13.000 mm + 0.000 / - 0.0075 _{(0.512 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 15.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F624-MC3 Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $93.32 AUD Regular price Sale price $93.32 AUD Unit price per Each View the product page first if you are unsure.
F624-MC3 --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 F624-MC3 --- Single Row Ball Bearings - 4x13x5 mm - Chrome Steel SAE 52100 Regular price $93.32 AUD Regular price Sale price $93.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.007 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.007 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.120 _{(0.197 in.)}		Flange Diameter (DF) 18.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF634-ZZ-MC3-JP6 (20 Pcs) Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $316.23 AUD Regular price Sale price $316.23 AUD Unit price per Per 20
ID (d) 4.000 mm + 0.000 / - 0.007 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.007 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.120 _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.000 mm Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF634-ZZ-MC3-JP6 (20 Pcs) Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $316.23 AUD Regular price Sale price $316.23 AUD Unit price per Per 20 View the product page first if you are unsure.
SF634-ZZ-MC3-JP6 (20 Pcs) --- Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C SF634-ZZ-MC3-JP6 (20 Pcs) --- Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Regular price $316.23 AUD Regular price Sale price $316.23 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}		Flange Diameter (DF) 18.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF634-MC3 Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $122.68 AUD Regular price Sale price $122.68 AUD Unit price per Each
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF634-MC3 Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Tue, Jun 17, 2025 Regular price $122.68 AUD Regular price Sale price $122.68 AUD Unit price per Each View the product page first if you are unsure.
SF634-MC3 --- Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C SF634-MC3 --- Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Regular price $122.68 AUD Regular price Sale price $122.68 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}		Flange Diameter (DF) 18.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF634-ZZ-MC3 Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C 21 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.91 AUD Regular price ~~$16.24 AUD~~ Sale price $4.91 AUD Unit price per Each
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SF634-ZZ-MC3 Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C 21 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.91 AUD Regular price ~~$16.24 AUD~~ Sale price $4.91 AUD Unit price per Each
SF634-ZZ-MC3 --- Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Sale SF634-ZZ-MC3 --- Single Row Ball Bearings - 4x16x5 mm - Stainless Steel AISI 440C Regular price $4.91 AUD Regular price ~~$16.24 AUD~~ Sale price $4.91 AUD Unit price per 21 Available Now Sale
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}		Flange Diameter (DF) 18.000 mm	Flange Width (BF) 1.000 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F634-ZZ-MC3 (20 Pcs) Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $263.95 AUD Regular price Sale price $263.95 AUD Unit price per Per 20
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F634-ZZ-MC3 (20 Pcs) Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $263.95 AUD Regular price Sale price $263.95 AUD Unit price per Per 20 View the product page first if you are unsure.
F634-ZZ-MC3 (20 Pcs) --- Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 F634-ZZ-MC3 (20 Pcs) --- Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 Regular price $263.95 AUD Regular price Sale price $263.95 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.007 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.007 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.120 _{(0.197 in.)}		Flange Diameter (DF) 18.000 mm	Flange Width (BF) 1.000 mm
Material: Chrome Steel SAE 52100 Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F634-ZZ-MC3-JP6 (20 Pcs) Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $263.95 AUD Regular price Sale price $263.95 AUD Unit price per Per 20
ID (d) 4.000 mm + 0.000 / - 0.007 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.007 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.120 _{(0.197 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.000 mm Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: F634-ZZ-MC3-JP6 (20 Pcs) Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $263.95 AUD Regular price Sale price $263.95 AUD Unit price per Per 20 View the product page first if you are unsure.
F634-ZZ-MC3-JP6 (20 Pcs) --- Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 F634-ZZ-MC3-JP6 (20 Pcs) --- Single Row Ball Bearings - 4x16x5 mm - Chrome Steel SAE 52100 Regular price $263.95 AUD Regular price Sale price $263.95 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}	Inner Ring Width (Bn) 5.800 mm	Flange Diameter (DF) 18.000 mm	Flange Width (BF) 1.000 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFW634-ZZ-MC3 Single Row Ball Bearings - 4x16x5 mm / 5.8 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.000 mm + 0.000 / - 0.0075 _{(0.157 in.)}	OD (D) 16.000 mm + 0.000 / - 0.0075 _{(0.63 in.)}	Width (B) 5.000 mm + 0.000 / - 0.125 _{(0.197 in.)}	Inner Ring Width (Bn) 5.800 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 18.000 mm Flange Width (BF): 1.000 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFW634-ZZ-MC3 Single Row Ball Bearings - 4x16x5 mm / 5.8 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.763 mm + 0.000 / - 0.0075 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.125 _{(0.109 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFR156-MC3 Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C 15 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.09 AUD Regular price ~~$13.67 AUD~~ Sale price $4.09 AUD Unit price per Each
ID (d) 4.763 mm + 0.000 / - 0.0075 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.125 _{(0.109 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFR156-MC3 Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C 15 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $4.09 AUD Regular price ~~$13.67 AUD~~ Sale price $4.09 AUD Unit price per Each
SFR156-MC3 --- Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Sale SFR156-MC3 --- Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Regular price $4.09 AUD Regular price ~~$13.67 AUD~~ Sale price $4.09 AUD Unit price per 15 Available Now Sale
ID (d) 4.763 mm + 0.000 / - 0.005 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.040 _{(0.109 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 5 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156-MC34-GR5-R-L23 (22 Pcs) Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $1,140.95 AUD Regular price Sale price $1,140.95 AUD Unit price per Per 22
ID (d) 4.763 mm + 0.000 / - 0.005 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.040 _{(0.109 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 5 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156-MC34-GR5-R-L23 (22 Pcs) Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $1,140.95 AUD Regular price Sale price $1,140.95 AUD Unit price per Per 22 View the product page first if you are unsure.
SFR156-MC34-GR5-R-L23 (22 Pcs) --- Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C SFR156-MC34-GR5-R-L23 (22 Pcs) --- Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Regular price $1,140.95 AUD Regular price Sale price $1,140.95 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.000 / - 0.004 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.040 _{(0.109 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 7 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156-MC34-GR7-R-L23 (50 Pcs) Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $2,940.41 AUD Regular price Sale price $2,940.41 AUD Unit price per Per 50
ID (d) 4.763 mm + 0.000 / - 0.004 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.040 _{(0.109 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 7 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156-MC34-GR7-R-L23 (50 Pcs) Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $2,940.41 AUD Regular price Sale price $2,940.41 AUD Unit price per Per 50 View the product page first if you are unsure.
SFR156-MC34-GR7-R-L23 (50 Pcs) --- Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C SFR156-MC34-GR7-R-L23 (50 Pcs) --- Single Row Ball Bearings - 4.763x7.938x2.779 mm - Stainless Steel AISI 440C Regular price $2,940.41 AUD Regular price Sale price $2,940.41 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.000 / - 0.005 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.125 _{(0.109 in.)}	Inner Ring Width (Bn) 3.571 mm	Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.584 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 3 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFWR156-MC34-U3-AF12 Single Row Ball Bearings - 4.763x7.938x2.779 mm / 3.571 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.763 mm + 0.000 / - 0.005 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 2.779 mm + 0.000 / - 0.125 _{(0.109 in.)}	Inner Ring Width (Bn) 3.571 mm
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.584 mm Precision Grade: Abec 3 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFWR156-MC34-U3-AF12 Single Row Ball Bearings - 4.763x7.938x2.779 mm / 3.571 mm - Stainless Steel AISI 440C Contact Us \| Item Discontinued - Please contact us if you need a large quantity
ID (d) 4.763 mm + 0.000 / - 0.004 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.040 _{(0.125 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.914 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 7 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156A-ZZS-MC34-GR7-R-L23 (45 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $3,096.32 AUD Regular price Sale price $3,096.32 AUD Unit price per Per 45
ID (d) 4.763 mm + 0.000 / - 0.004 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.040 _{(0.125 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.914 mm Precision Grade: Abec 7 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156A-ZZS-MC34-GR7-R-L23 (45 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $3,096.32 AUD Regular price Sale price $3,096.32 AUD Unit price per Per 45 View the product page first if you are unsure.
SFR156A-ZZS-MC34-GR7-R-L23 (45 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C SFR156A-ZZS-MC34-GR7-R-L23 (45 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Regular price $3,096.32 AUD Regular price Sale price $3,096.32 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.000 / - 0.007 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.007 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.120 _{(0.125 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.914 mm
Material: Stainless Steel AISI 440C Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFR156A-ZZS-MC3-JP6 (50 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $780.68 AUD Regular price Sale price $780.68 AUD Unit price per Per 50
ID (d) 4.763 mm + 0.000 / - 0.007 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.007 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.120 _{(0.125 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.914 mm Precision Grade: P6 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFR156A-ZZS-MC3-JP6 (50 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $780.68 AUD Regular price Sale price $780.68 AUD Unit price per Per 50 View the product page first if you are unsure.
SFR156A-ZZS-MC3-JP6 (50 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C SFR156A-ZZS-MC3-JP6 (50 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Regular price $780.68 AUD Regular price Sale price $780.68 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.000 / - 0.005 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.040 _{(0.125 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.914 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 5 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156A-ZZS-MC34-GR5-R-L23 (20 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $1,214.68 AUD Regular price Sale price $1,214.68 AUD Unit price per Per 20
ID (d) 4.763 mm + 0.000 / - 0.005 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.005 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.040 _{(0.125 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.914 mm Precision Grade: Abec 5 Category: Bearings - Single Row Ball - Flanged - High Precision
Part Number: SFR156A-ZZS-MC34-GR5-R-L23 (20 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Out of Stock \| Backorder Now \| Orders can be expected around Sat, Jul 05, 2025 Regular price $1,214.68 AUD Regular price Sale price $1,214.68 AUD Unit price per Per 20 View the product page first if you are unsure.
SFR156A-ZZS-MC34-GR5-R-L23 (20 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C SFR156A-ZZS-MC34-GR5-R-L23 (20 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Regular price $1,214.68 AUD Regular price Sale price $1,214.68 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.000 / - 0.0075 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.125 _{(0.125 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.914 mm
Material: Stainless Steel AISI 440C Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFR156A-ZZS-MC3 Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C 95 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $13.91 AUD Regular price ~~$47.92 AUD~~ Sale price $13.91 AUD Unit price per Each
ID (d) 4.763 mm + 0.000 / - 0.0075 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.125 _{(0.125 in.)}
Material: Stainless Steel AISI 440C Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.914 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: SFR156A-ZZS-MC3 Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C 95 Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $13.91 AUD Regular price ~~$47.92 AUD~~ Sale price $13.91 AUD Unit price per Each
SFR156A-ZZS-MC3 --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Sale SFR156A-ZZS-MC3 --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Stainless Steel AISI 440C Regular price $13.91 AUD Regular price ~~$47.92 AUD~~ Sale price $13.91 AUD Unit price per 95 Available Now Sale
ID (d) 4.763 mm _{(0.188 in.)}	OD (D) 7.938 mm _{(0.313 in.)}	Width (B) 3.175 mm _{(0.125 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.914 mm
Material: Chrome Steel SAE 52100 Precision Grade: Economy Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: FR156A-ZZS-ECO (50 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $280.86 AUD Regular price Sale price $280.86 AUD Unit price per Per 50
ID (d) 4.763 mm _{(0.188 in.)}	OD (D) 7.938 mm _{(0.313 in.)}	Width (B) 3.175 mm _{(0.125 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.914 mm Precision Grade: Economy Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: FR156A-ZZS-ECO (50 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 Out of Stock \| Backorder Now \| Orders can be expected around Thu, Jun 12, 2025 Regular price $280.86 AUD Regular price Sale price $280.86 AUD Unit price per Per 50 View the product page first if you are unsure.
FR156A-ZZS-ECO (50 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 FR156A-ZZS-ECO (50 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 Regular price $280.86 AUD Regular price Sale price $280.86 AUD Unit price per Out of stock! Backorder Now
ID (d) 4.763 mm + 0.000 / - 0.0075 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.125 _{(0.125 in.)}		Flange Diameter (DF) 9.119 mm	Flange Width (BF) 0.914 mm
Material: Chrome Steel SAE 52100 Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: FR156A-ZZS-MC3 (2 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 10 units (20 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.59 AUD Regular price ~~$23.68 AUD~~ Sale price $5.59 AUD Unit price per Per 2
ID (d) 4.763 mm + 0.000 / - 0.0075 _{(0.188 in.)}	OD (D) 7.938 mm + 0.000 / - 0.0075 _{(0.313 in.)}	Width (B) 3.175 mm + 0.000 / - 0.125 _{(0.125 in.)}
Material: Chrome Steel SAE 52100 Flange Diameter (DF): 9.119 mm Flange Width (BF): 0.914 mm Precision Grade: Abec 1 Category: Bearings - Single Row Ball - Flanged - Precision
Part Number: FR156A-ZZS-MC3 (2 Pcs) Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 10 units (20 pcs) Available Immediately \| Item Discontinued - Only the quantity available may be ordered - Please contact us if you need a larger quantity Regular price $5.59 AUD Regular price ~~$23.68 AUD~~ Sale price $5.59 AUD Unit price per Per 2
FR156A-ZZS-MC3 (2 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 Sale FR156A-ZZS-MC3 (2 Pcs) --- Single Row Ball Bearings - 4.763x7.938x3.175 mm - Chrome Steel SAE 52100 Regular price $5.59 AUD Regular price ~~$23.68 AUD~~ Sale price $5.59 AUD Unit price per 10 Available Now Sale
