Rod Ends - Female - Steel - Studded - Nylon Seat

Nylon Seat Studded Steel Female Rod Ends. Housing is plated and dichromate treated steel.

  • An expanded range may be available on special order. Please enquire.
  • Ball is case hardened and plated
  • Stud is permanently affixed and made from heat treated alloy steel, zinc plated.

Product Data

  • Thread Size : 1/4-28 UNF (6.35mm) Right Hand
  • Thread Length (H) 19.05 mm
    (Equiv. 0.75 in.)
  • Thread Length (C) 14.28 mm
    (Equiv. 0.562 in.)
  • Head Diameter (E) 19.05 mm
  • Centre Height (G) 33.33 mm
  • Top Width (M) 07.14 mm
  • Ball Width (L) 09.53 mm
  • Base Width 11.91 mm
  • Base Length (P) 09.53 mm
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SPF4S
    • SPF-4S
    View full details

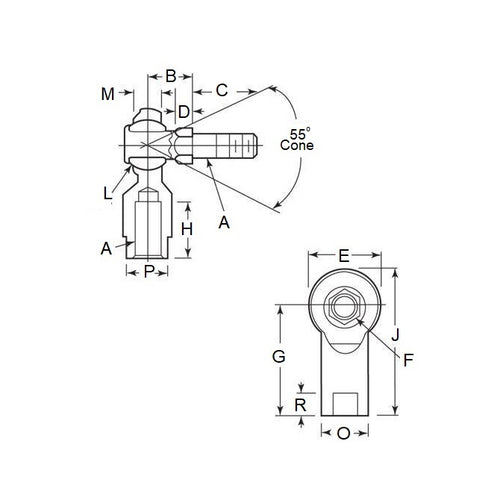

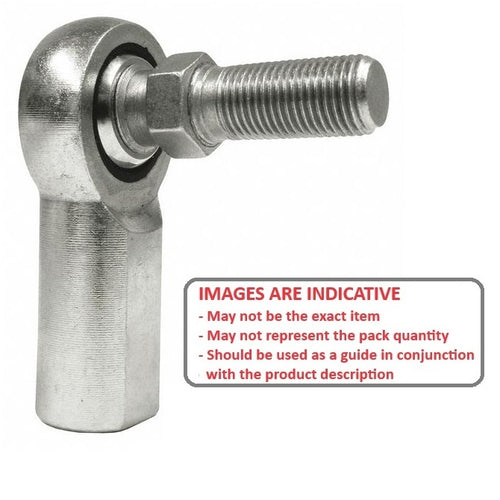

    SPF4SRSDiagramSPF4SRSImage
