CCI-02200-S15-V - Datasheet
MBA
Category Information

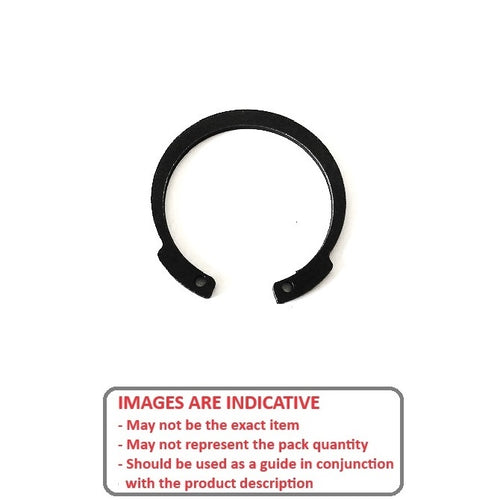

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data

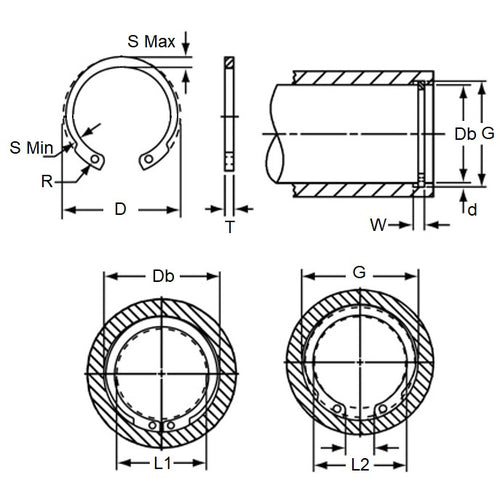

- Housing Bore (B)
:
22.00
mm
(Equiv. 0.866 in.) - Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.) - Groove Dia. (Dg)
23.00
mm
+ 0.00 / - 0.06
(Equiv. 0.906 in.) - Approx. Loose Circlip OD (Dr) 23.50 mm + 0.42 / - 0.13
- Radial Wall Max (S) 2.3 - 2.4
- Groove Width (W) 1.10 mm
- Tool PRS-I011
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-022-SS
- Ellison INTV-022-SS
- Seeger JV-022-SS
- NoCor MDHOI-022-SS
- MDHOI022SS
- JV022SS
- INTV022SS
- M1308-022-SS
- M1308022SS
- BN830022SS
