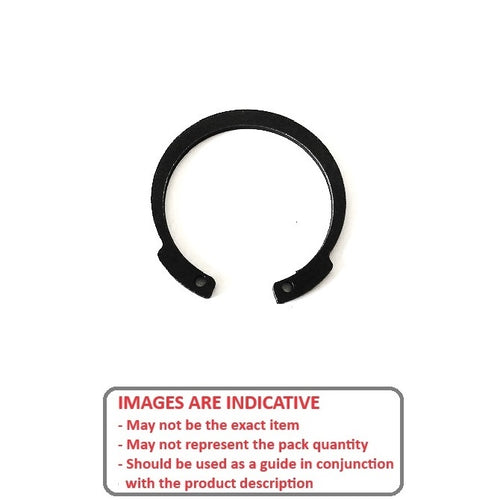

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

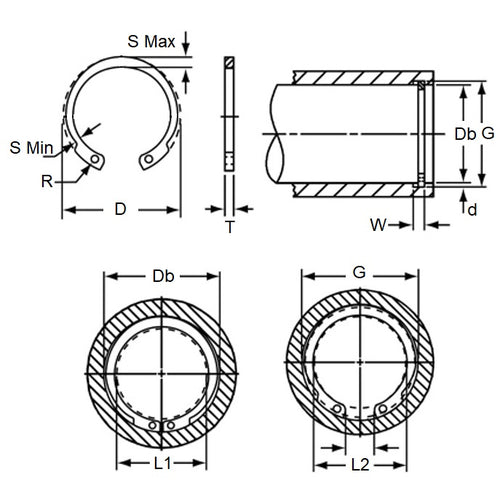

Product Data
- Housing Bore (B)
:
10.00
mm
(Equiv. 0.394 in.) - Clip Thickness (T)
0.60
mm
+ 0.11 / - 0.00
(Equiv. 0.024 in.) - Groove Dia. (Dg)
10.50
mm
+ 0.00 / - 0.05
(Equiv. 0.413 in.) - Approx. Loose Circlip OD (Dr) 10.90 mm + 0.42 / - 0.13
- Radial Wall Max (S) 1.4 - 1.5
- Groove Width (W) 0.70 mm
- Tool PRS-I009
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-010
- Ellison INTV-010
- Seeger JV-010
- NoCor MDHOI-010
- MDHOI010
- JV010
- INTV010
- M1308-010
- M1308010
- BN830010
