CIB-05199-C - Datasheet
MBA
Category Information

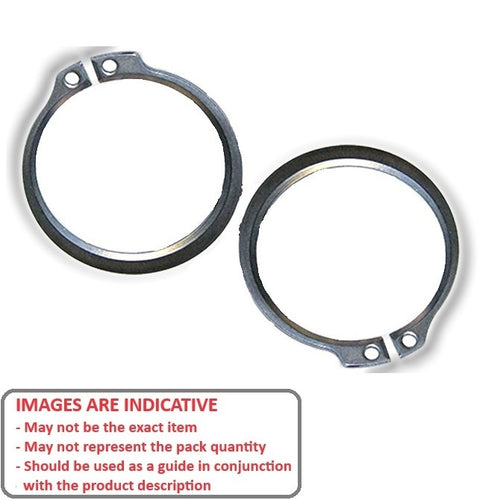

Retaining Rings - Internal - Circlips - BevelledBevelled Circlips Internal Retaining Rings. N1302 / VHO / 16631 / 9002 / N5002. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- A 15 Deg. bevel on the outside diameter to be fitted to a 15% bevel on the load bearing groove wall.
- Will yield rigid end-play take-up of manufacturing tolerances or wear on the retained part.
- Used in greasy or oily environments.
Product Data

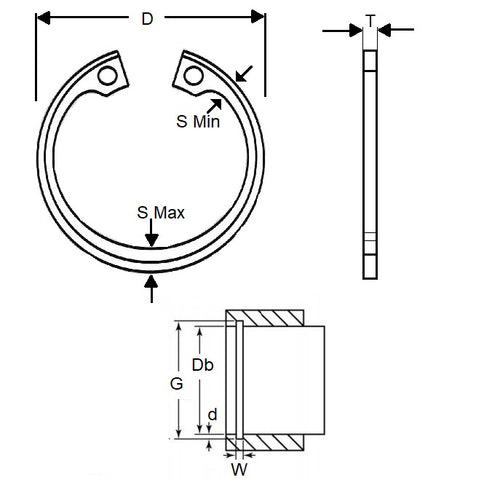

- Housing Bore (B)
:
51.99
mm
(Equiv. 2.047 in.) - Clip Thickness (T)
1.91
mm
+ 0.13 / - 0.00
(Equiv. 0.075 in.) - Groove Dia. (Dg)
55.75
mm
+/- 0.08
(Equiv. 2.195 in.) - Approx. Loose Circlip OD (Dr) 57.15 mm + 1.52 / - 0.00
- Radial Wall (S) min/max 2.31 - 4.72
- Groove Width (W) 1.65 mm + 0.03 / - 0.00
- Tool PRS-I090
- Material Carbon Spring Steel
