G007L-09-D32-0300-C - Datasheet
MBA
Category Information

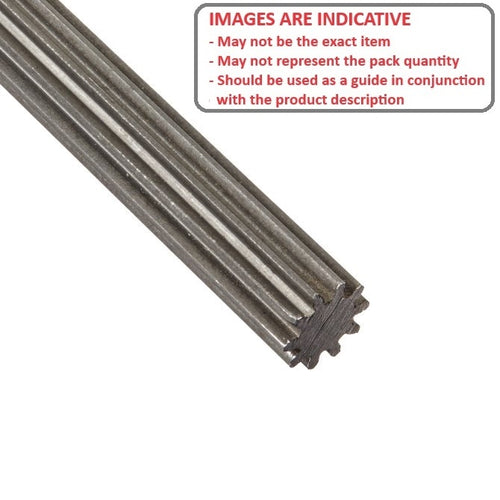

Gears - Pinion Wire 32DPPinion Wire 32DP Gears. Brass and carbon steel.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Please note that very thin pinion wire may not be supplied perfectly straight. Pinion wire is meant to be cut into much smaller pieces to make pinion gears so the slight bends in the long length will have no effect on the intended use.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
- DP is Diametrical Pitch
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

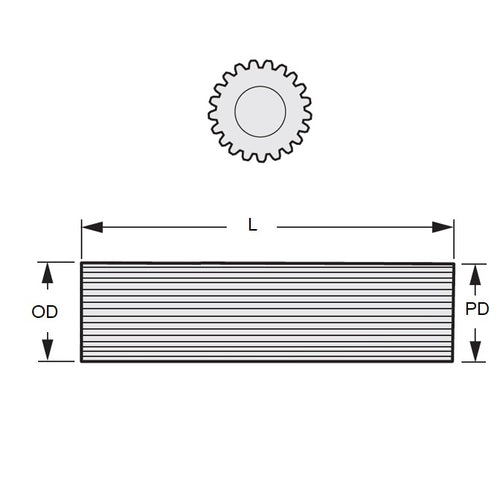

- Number of Teeth : 9
- Outside Diameter (OD)
8.738
mm
(Equiv. 0.344 in.) - Length (L)
300
mm
(Equiv. 11.811 in.) - Pressure Angle 20 °
- Pitch Diameter (PD) 7.14 mm
- Material Carbon steel
Product Compliance and Data
Additional Resources
Cross References
- A 1C 9-Y321009
- A1C9Y321009
- A1C9-Y321009
