Retaining Rings - External - Spiral Rings - Light Duty - Carbon SteelCarbon Steel Light Duty Spiral Rings External Retaining Rings. Includes series CE / VS / US - Spring Steel
- An expanded range may be available on special order. Please enquire.
- Light duty single turn rings used in low clearance applications.
- Also used as a positioning point for light loads.
- Radius notch on one end for removal.
- Narrow radial wall yields moderate thrust loads.
- Equivalent to Associated Spring: CE, Smalley: VS, Spirolox and Ramsey: US
Product Data

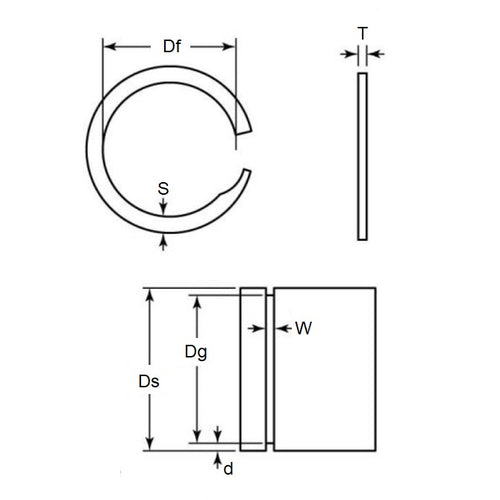

- Shaft Diameter (Ds)
:
88.90
mm
(Equiv. 3.5 in.) - Clip Thickness (T)
0.99
mm
+/- 0.05
(Equiv. 0.039 in.) - Groove Dia. (Dg)
85.65
mm
(Equiv. 3.372 in.) - Approx. Loose Circlip ID (A) 84.46 mm + 0.00 / - 0.76
- Radial Wall (S) 4.78 mm +/- 0.13
- Groove Width (W) 1.16 mm +/- 0.15
- Approx. Loose Clip OD 94.02 +/- - 0.03
- Groove Depth (d) 1.17
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Smalley VS-350
- VS350
