Miniature Bearings Australia
SK042C-019-SK-A - Datasheet
MBA
Category Information

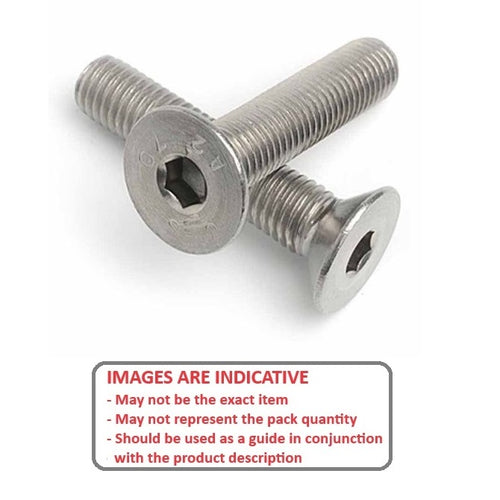

Screws - Countersunk - Socket - AluminiumAluminium Socket Countersunk Screws. Flat Head Countersunk UNC - UNF - METRIC.
- An expanded range may be available on special order. Please enquire.
- Imperial Sizes to ANSI B18.3.
- Metric Sizes to DIN7991.
- ISO 10642
Product Data

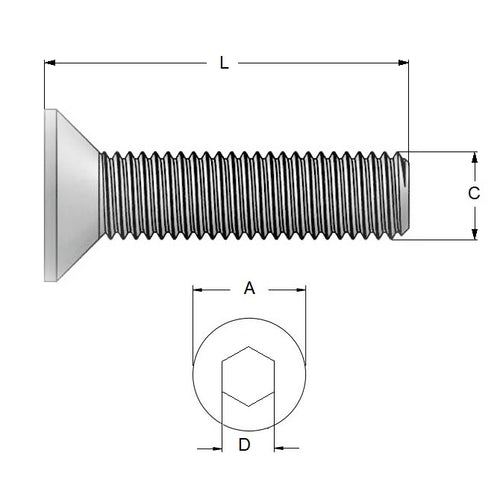

- Thread Size (C) : 8-32 UNC (4.17mm)
- Overall Length (L)
19.1
mm
+ 0.0 / - 0.76
(Equiv. 0.752 in.) - Material Aluminium
- Max Head Diameter 9.1 mm
- Max Head Height 2.8 mm
- Minimum Thread Length (l) Full Thread mm
- Hex Key (s) 2.38 (3/32) mm
- Countersunk Angle 82 °
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Aluminium
