DP080-025-PC-1 - Datasheet
NoCor
Category Information

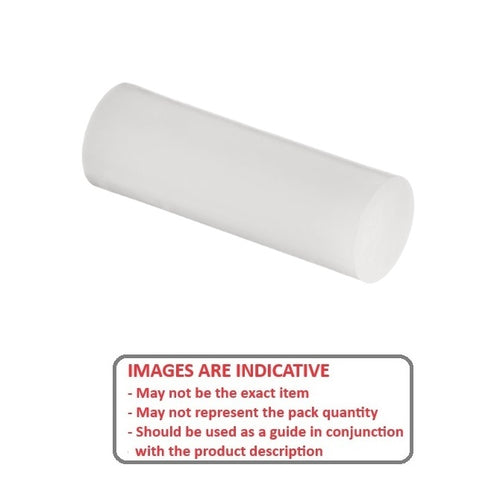

Pins - Dowel - Standard - Chamfered Ends - PlasticPlastic Chamfered Ends Standard Dowel Pins. Plastic Dowel Pins - Based on DIN6325 or ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
8.000
mm
+ 0.03 / - 0.00
(Equiv. 0.315 in.) - Length (L)
25.00
mm
(Equiv. 0.984 in.) - Approx. Overall Length
25.00
mm
(Equiv. 0.984 in.) - Type 1 (Chamfer One End)
- Static Yeild Load 2.10 kN
- Standard DIN 6325
- Material Polycarbonate
Product Compliance and Data
Additional Resources
Cross References
- Misumi MSIPJ8-25
- MSIPJ825
