CCI-07303-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

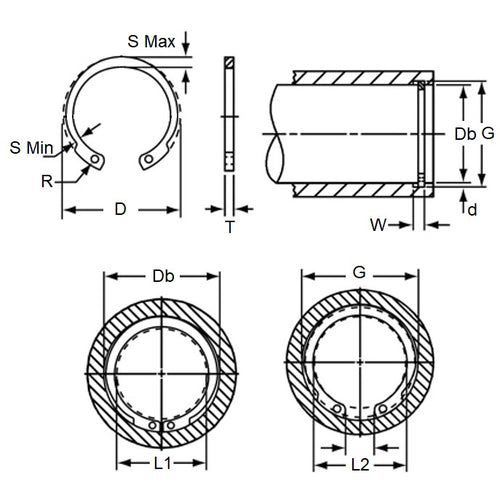

Product Data
- Housing Bore (B)
:
73.03
mm
(Equiv. 2.875 in.) - Clip Thickness (T)
2.36
mm
+/- 0.152
(Equiv. 0.093 in.) - Groove Dia. (Dg)
77.50
mm
+/- 0.076
(Equiv. 3.051 in.) - Approx. Loose Circlip OD (Dr) 81.05 mm
- Radial Wall Max (S) 3.53 - 7.37
- Groove Width (W) 2.62 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor HOI-287
- HOI287
- N13080283
- N1308-0283
