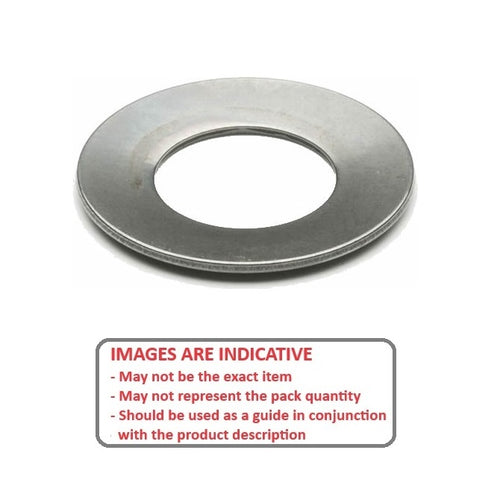

W0310-D-063-025-S17 - Datasheet
MBA
Category Information
Washers - Disc Spring - Standard - Stainless SteelStainless Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093 and belleville washers to DIN 6796.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data

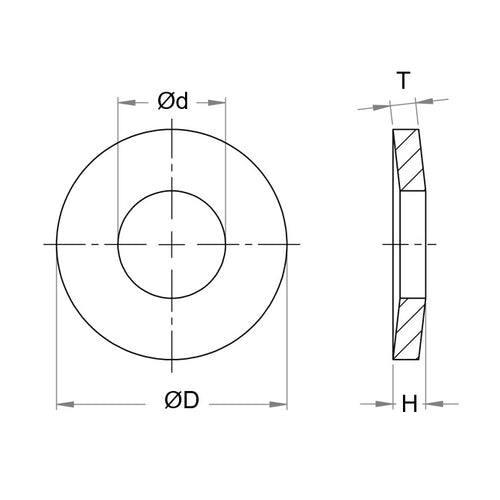

- Nominal Outside Diameter (A)
:
63.00
mm
(Equiv. 2.48 in.) - Nominal Inside Diameter (B)
30.00
mm
+ 1.00 / - 0.00
(Equiv. 1.181 in.) - Stock Thickness (C)
2.50
mm
(Equiv. 0.098 in.) - Loaded Height (L1) 2.94 mm
- Load at L1 719.0 kg
- Free Height (E) 4.25 mm
- Actual ID (Ref) 31.0 mm
- Inside Height (D) 1.75 mm
- Material Stainless Steel 17-7 PH
Product Compliance and Data
Additional Resources
Cross References
- WASCA DS633125SS
- S4354SS
