Miniature Bearings Australia
CCE-06033-CZY - Datasheet
MBA
Category Information

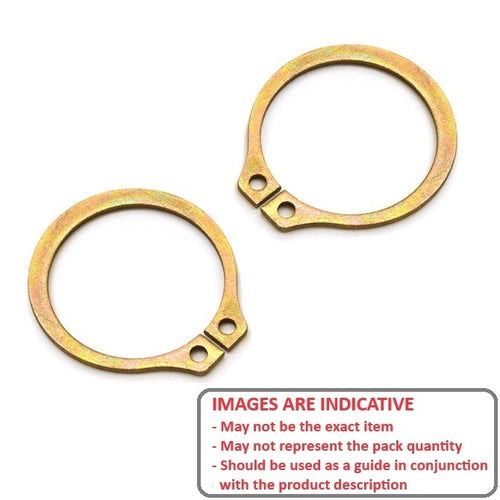

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
60.33
mm
(Equiv. 2.375 in.) - Clip Thickness (T)
1.98
mm
+/- 0.152
(Equiv. 0.078 in.) - Groove Dia. (Dg)
56.90
mm
+/- 0.076
(Equiv. 2.24 in.) - Approx. Loose Circlip ID (A) 55.80 mm
- Groove Width (W) 2.20 mm
- Standard MIL-16624
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98410A157
- NoCor SH-237-ZD
- N14000237AZD
- N1400-0237AZD
- SH237ZD
