W0064-F-016-020-HTZ - Datasheet

MBA

High Tensile Commercial Flat Washers. Grade 8 high tensile washers.

Flat washers are available in many different materials, and can be used for spacing and shimming nuts and bolts, bearing shaft and all types of mechanical applications. An expanded range may be available on special order. Please enquire.
Flat plain washers distrubute the load of screws and other fasteners, which prevents the fastener from indenting the material being fastened. Commercial washers have wide tolerances, whilst precision washers have precise tolerances.
Washers also increase the surface area, reducing the risk of loosening. Note that the Nominal ID is the shaft, bolt or screw size that the washer is designed to fit over. The washer ID will have clearance on that size. See tolerances and standards listed.
ASTM F436 1985.
Please note! Tolerances for commercial grade washers are much larger than for precision washers.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

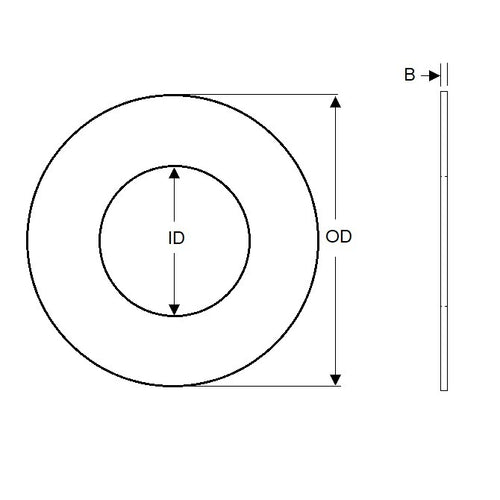

Nominal Inside Diameter (d) : 6.35 mm _{ASME / ANSI B18.22.1}
(Equiv. 0.25 in.)
Nominal Outside Diameter (D) 15.90 mm _{ASME / ANSI B18.22.1}
(Equiv. 0.626 in.)
Thickness (T) 2.00 mm _{ASME / ANSI B18.22.1}
(Equiv. 0.079 in.)
Other 1/4 High Tensile Washer
Grade Commercial
Actual ID (Ref) 6.7 mm
Material Steel - Zinc Plated

Country of Origin: AU
