BIT-064-10 - Datasheet
MBA
Category Information

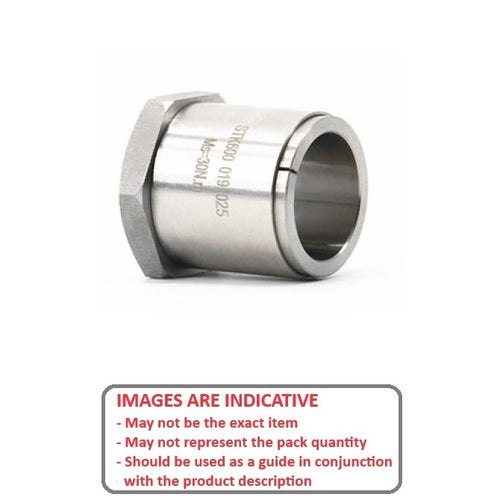

Bushings - Integral TaperIntegral Taper Bushings. Stainless Steel Taper Bushings.
- This category will be discontinued when this item is sold.
- This item is priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Will not mar shafts.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

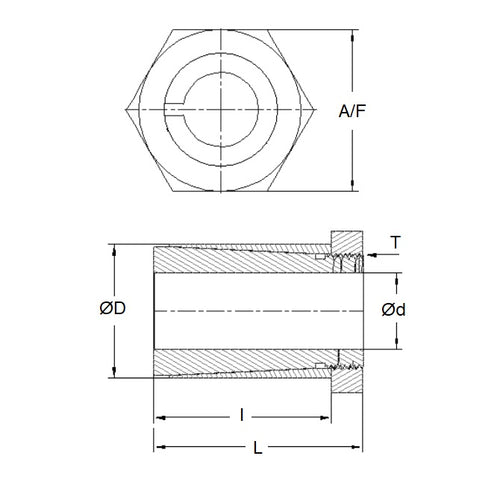

- Suitable Shaft Size (d) H7 : 6.350 mm
- Component ID (D) h7 10.000 mm
- Sleeve Length (l) 12.500 mm
- Max. Torque 7 N.m
- Overall Length (L) +/-0.1 15.00 mm
- Bore Tolerances +.012/-.000 mm
- OD Tolerance +.000/-.015 mm
- Dimension Across Flats 10 mm
- Thread Size (T) M8x0.5
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- BS635
- BS-6.35
