CNG-00600-C - Datasheet

MBA

Category Information

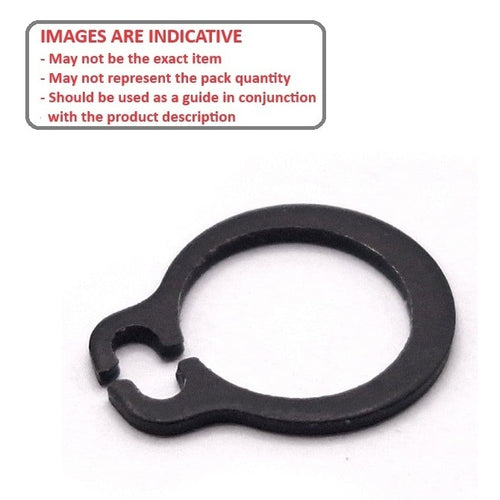

Retaining Rings - External - Circlips - Grooveless

Grooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).

An expanded range may be available on special order. Please enquire.
Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

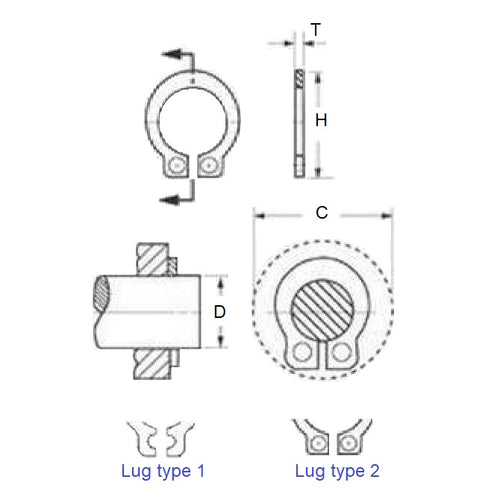

Shaft Diameter (Ds) : 6.00 mm _{+/- 0.08}
(Equiv. 0.236 in.)
Clip Thickness (T) 1.00 mm
(Equiv. 0.039 in.)
Approx. Loose Circlip ID (A) 5.72 mm
Assemb. Clearance on Shaft (C) 12.60
Allowable Load 166 N
Lug Type 1 (Open) mm
Tool PRS-ZGG1
Material Carbon Steel

Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

ATA 140-408320
NoCor DSHX-006
D14406
D1440-6
140408320
DSHX006
M1440-0060
M14400060
