ECL-0040-0050-S15 - Datasheet
MBA
Category Information

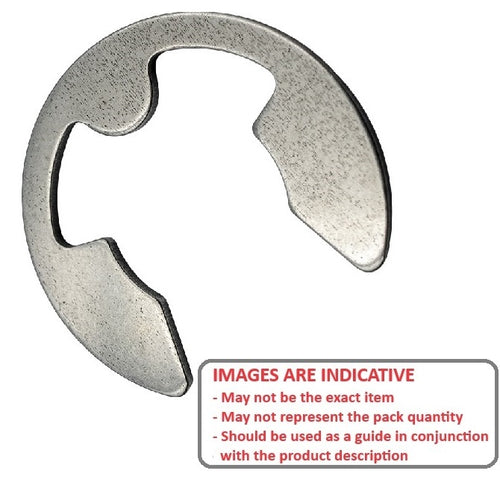

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
Product Data
- Minimum Rec. Shaft Dia (S)
:
5.00
mm
+ 2.00 / - 0.00

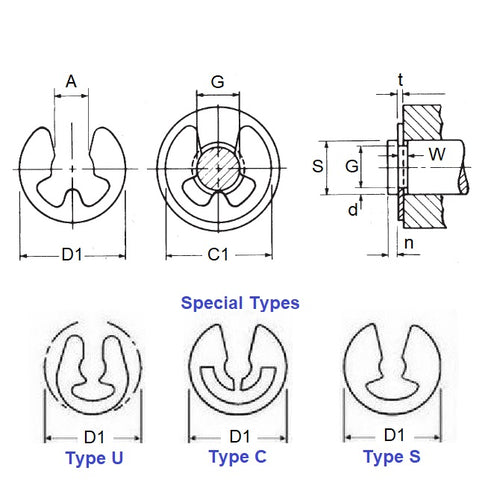

(Equiv. 0.197 in.) - Groove Dia. (Dg)
4.00
mm
+ 0.00 / - 0.075
(Equiv. 0.157 in.) - Clip Thickness (T)
0.70
mm
+/ - 0.02
(Equiv. 0.028 in.) - Clip OD Loose (D1) 8.80 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 7.00
- Clip OD in groove (C1) 9.30 mm
- Loose Clip ID (A) 3.40 mm
- Min. Extension (n) 1.20
- Standard DIN6799
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- 98317A214
- NoCor DE-040-SS
- Small Parts MERE-04
- MERE04
- 1500-0040KSF
- 15000040KSF
- D1500-0040KSF
- D15000040KSF
- DE040SS
