CCE-04445H-CZY - Datasheet
MBA
Category Information

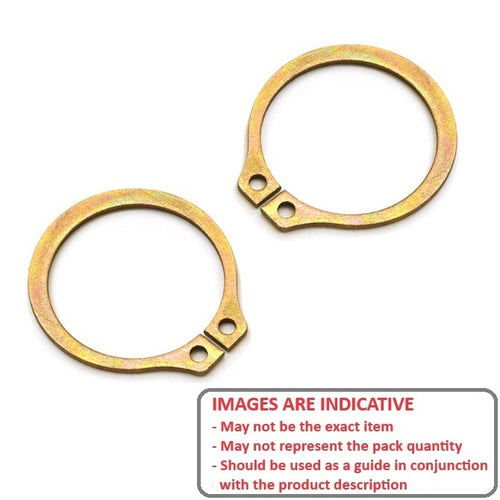

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
44.45
mm
(Equiv. 1.75 in.) - Clip Thickness (T)
2.77
mm
+ 0.076 / - 0.102
(Equiv. 0.109 in.) - Groove Dia. (Dg)
41.91
mm
+/- 0.076
(Equiv. 1.65 in.) - Approx. Loose Circlip ID (A) 40.84 mm
- Standard MIL-3217
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHR-175-ZD
- N1460-0175AZD
- N14600175AZD
- SHR175ZD
