CCI-04288-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

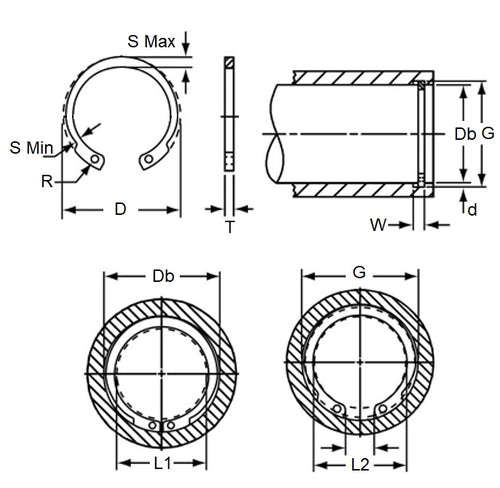

Product Data
- Housing Bore (B)
:
42.86
mm
(Equiv. 1.687 in.) - Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
45.52
mm
+/- 0.076
(Equiv. 1.792 in.) - Approx. Loose Circlip OD (Dr) 47.60 mm
- Radial Wall Max (S) 2.01 - 4.22
- Groove Width (W) 1.73 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor HOI-168
- HOI168
- N1308-0168
- N13080168
