CCE-04128-CZY - Datasheet
MBA
Category Information

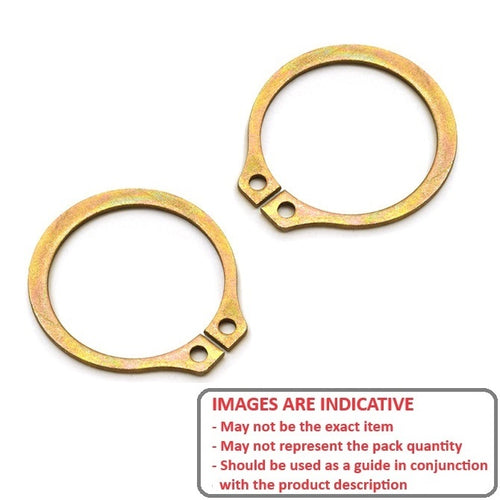

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
41.28
mm
(Equiv. 1.625 in.) - Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
38.84
mm
+/- 0.076
(Equiv. 1.529 in.) - Approx. Loose Circlip ID (A) 38.20 mm
- Groove Width (W) 1.70 mm
- Standard MIL-16624
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98410A140
- NoCor SH-162-ZD
- N1400-0162AZD
- N14000162AZD
- SH162ZD
