SFWR166-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Flanged - Precision - Extended Inner

Extended Inner Precision Flanged Single Row Ball Bearings. Single row radial ball bearings with flanges and extended inner rings (wide inner rings).

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
If the size you require is not available, you might consider using a standard bearing with shim washers.

Product Data

ID (d) : 4.763 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.188 in.)
OD (D) 9.525 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.375 in.)
Width (B) 3.175 mm _{+ 0.000 / - 0.125}
(Equiv. 0.125 in.)
Inner Ring Width (Bn) 3.969 mm
Flange Diameter (DF) 10.719 mm
Flange Width (BF) 0.787 mm
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial Flanged with Extended Inner
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part FWR166
Limiting Speed 50000
Cage Type Ribbon
Static Load Rating KGf 28
Dynamic Load Rating KGf 72
Radii 0.10 mm
Inner Shoulder (UI) 5.95mm
Outer Shoulder (UO) 8.80 mm
Number of Balls 8
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

View full details

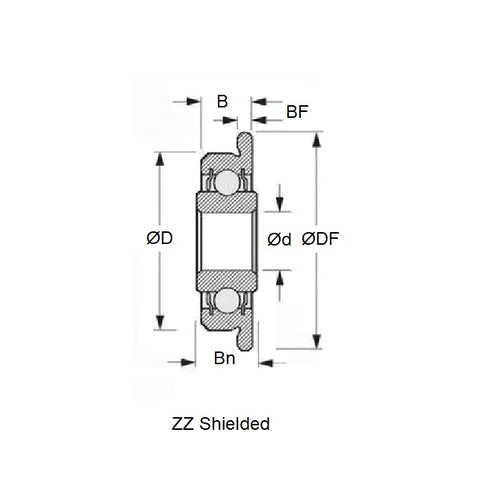

SFWR166-ZZ-MC3Diagram

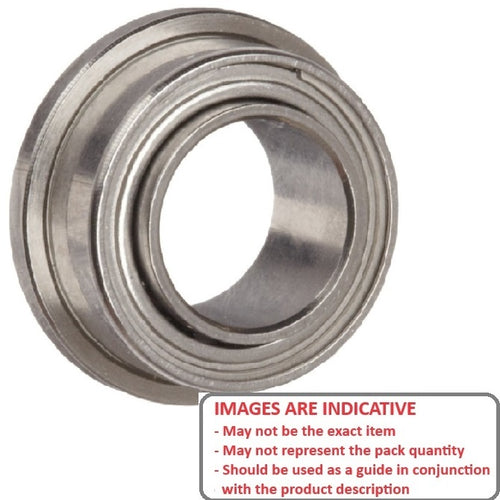

SFWR166-ZZ-MC3Image
