Miniature Bearings Australia
REF-048-L-PP - Datasheet
MBA
Category Information

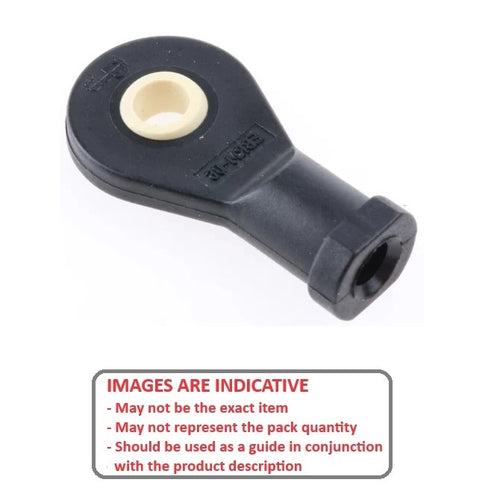

Rod Ends - Female - PlasticPlastic Female Rod Ends. Thermoplastic Body / L280(R) Polymer Ball. Also known as Heim Joints
- An expanded range may be available on special order. Please enquire.
- Dimensions not shown are available on request.
Product Data
- Eye Size (d1)
:
4.763
mm
(Equiv. 0.188 in.) - Overall Length (L)
34.90
mm
(Equiv. 1.374 in.) - Thread Size 10-32 UNF Left
- Thread Length (l2) 12.70 mm
- Head Width (W) 5.94 mm
- Eye Width (W1) 7.92 mm
- Head Diameter (D1) 14.29 mm
- Centre Height (l1) 26.97 mm
- Grease Nipple No
- Max Angle of Pivot 25 °
- Max Torque Strength 2.00 n.m
- Body Width/Flange Width(W2/D3) 10.31 / 12.70 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- 1064K71-LEFT
- Igus KBLI-03
- 1064K71LEFT
- KBLI03
