SHLD040-004-SKT-S416 - Datasheet
MBA
Category Information

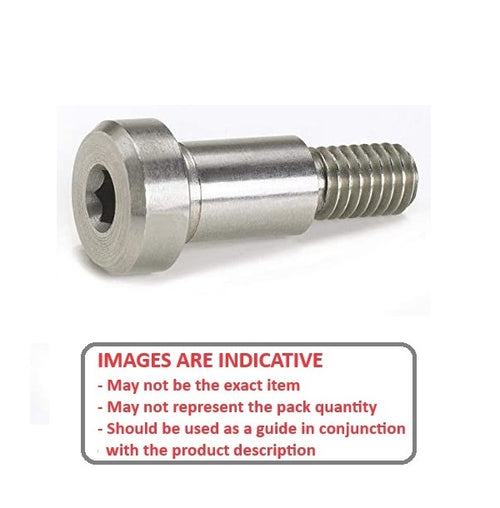

Screws - Shoulder - Socket Head - 416 Stainless416 Stainless Socket Head Shoulder Screws. 416 High Carbon Stainless Steel
- Also known as Pivot Pin, Fulcrum Screw, Stripper Bolt, Stepped Screw and Shoulder Socket Cap Screw
Product Data

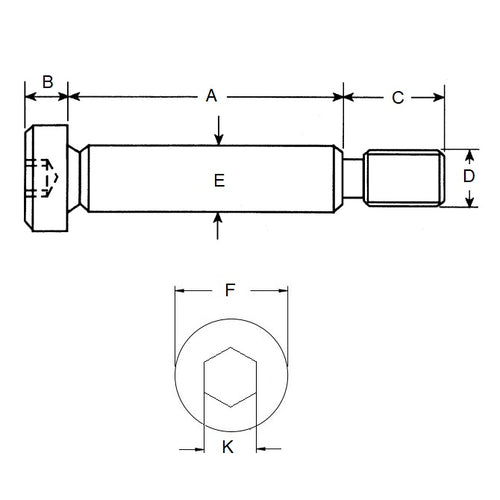

- Shoulder Diameter (E)
:
4.000
mm
- 0.013 / - 0.038
(Equiv. 0.157 in.) - Shoulder Length (A)
4.000
mm
+ 0.060 / - 0.000
(Equiv. 0.157 in.) - Thread (D) M3x0.5
- Max. Thread Length (C) 4.00 mm
- Head Height (B) 3.00 mm
- Head Diameter (F) 6.00 mm
- Allen Key Size 2.00 mm
- 26-32 HRC (Tensile Strength: 850-1000 N/mm2)
- Material Stainless Steel AISI 416 Rc 36-42
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- SHSS34
- SHSS3-4
