CSN-623-TTS-MC34-PK-DRY - Datasheet
MBA
Category Information

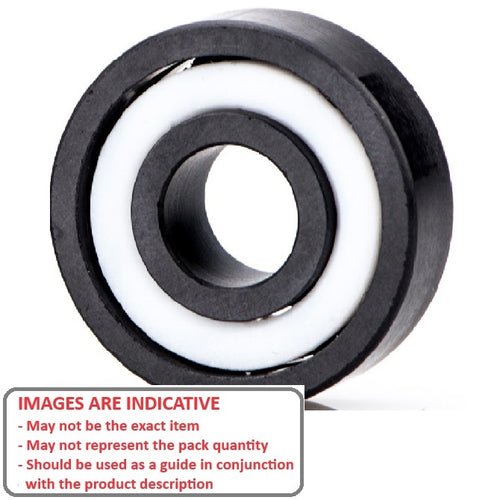

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Si3N4Ceramic Si3N4 Precision Unflanged Single Row Ball Bearings. Excellent performance in electrical and magnetism sensitive applications. Higher speed than Zr02. Full ceramic silicon nitride.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Applications include cryopumps, medical applications, semiconductors, turbine flow meters, food processing, robotics and optics.
- Wear and corrosion resistance. Lubrication and maintenance free. 3.2g/cubic cm density. Wear and corrosion resistance. Depending on the application, these bearings may run lubrication free or lubricated by the medium in which they are submerged.
- Cages of PTFE or Glass Fibre Reinforced Nylon. Can be made from special aviation aluminum on request.
- Si3N4 (GSN-201) standard material for balls and rings. HRC80 Hardness.
- High and low- temperature application. Up to 250 Deg C with PTFE Cage and 130 Deg C with Nylon Cage. Up to 700 deg C without a cage or seals.
Product Data
- ID (d)
:
3.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.118 in.) - OD (D)
10.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.394 in.) - Width (B)
4.000
mm
+ 0.000 / - 0.125
(Equiv. 0.157 in.) - Precision Grade Abec 1

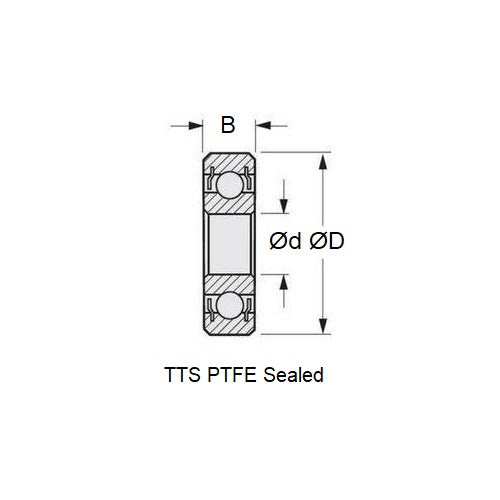

- Closure Type TTS
- Bearing Type Radial
- Lubricant No Lube
- Material Ceramic Silicon Nitride - PEEK Cage - PTFE Seals
- Lubrication Type Dry
- Lubrication Name No Lubricant
- Basic Part 623
- Limiting Speed 47500
- Cage Type PEEK
- Static Load Rating KGf 22
- Dynamic Load Rating KGf 64
- Radii 0.15 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 7.98 mm
- Number of Balls 7
- Clearance MC34 (5 to 13)
- Precision Grade Abec 1
- Closure Type TTS
- Max Temperature 200 Deg. C
