CCI-03800-C-V - Datasheet
MBA
Category Information

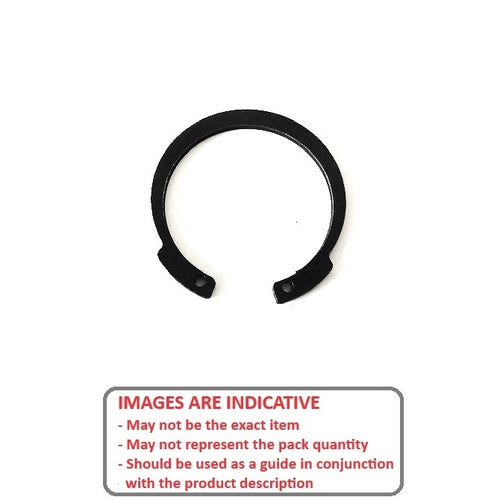

Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data

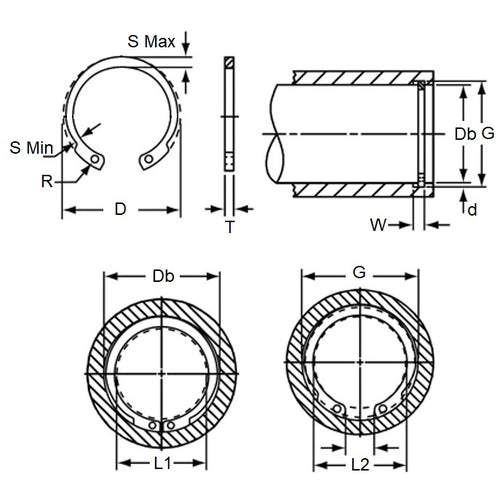

- Housing Bore (B)
:
38.00
mm
(Equiv. 1.496 in.) - Clip Thickness (T)
1.50
mm
+ 0.25 / - 0.00
(Equiv. 0.059 in.) - Groove Dia. (Dg)
40.00
mm
+ 0.00 / - 0.06
(Equiv. 1.575 in.) - Approx. Loose Circlip OD (Dr) 40.80 mm + 0.50 / - 0.25
- Radial Wall Max (S) 3.7 - 3.8
- Groove Width (W) 1.60 mm
- Tool PRS-I011
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-038
- Ellison INTV-038
- Seeger JV-038
- NoCor MDHOI-038
- MDHOI038
- JV038
- INTV038
- M1308-038
- M1308038
- M13080380APP
- M1308-0380APP
- BN830038
