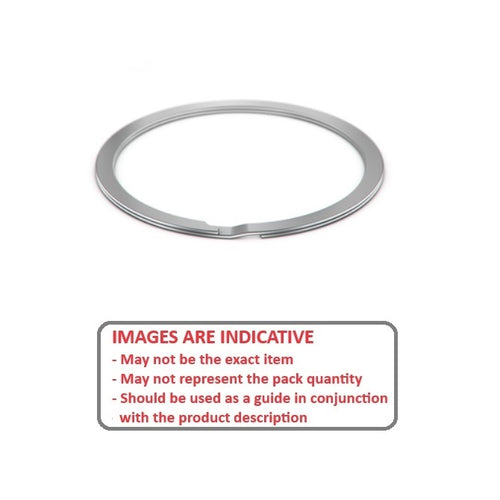

Retaining Rings - External - Spiral Rings - Medium Duty - Carbon Steel

Carbon Steel Medium Duty Spiral Rings External Retaining Rings. AE / WS / AS3218 / RS / MIL-R-27426A1 - Spring Steel

  • An expanded range may be available on special order. Please enquire.
  • Popular series that will accommodate light and medium bearing series thrust loads.
  • Available in military and aerospace specifications.
  • Equivalent to Associated Spring: AE, Smalley: WS, Spirolox and Ramsey: RS, Aerospace AS3218, MIL-R-27426A1

Product Data

  • Shaft Diameter (Ds) : 38.10 mm
    (Equiv. 1.5 in.)
  • Clip Thickness (T) 1.09 mm +/- 0.05
    (Equiv. 0.043 in.)
  • Groove Dia. (Dg) 36.78 mm
    (Equiv. 1.448 in.)
  • Approx. Loose Circlip ID (A) 35.81 mm + 0.00 / - 0.38
  • Radial Wall (S) min/max 2.41 mm +/- 0.10
  • Groove Width (W) 1.27 mm +/- 0.10
  • Approx. Loose Clip OD 40.63 +/- 0.05
  • Groove Depth (d) 0.66
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • 92623A210
  • Smalley RS-150
  • Spirolox RS-150
  • NoCor WS-150
  • Smalley WS-150
  • RS150
  • WS150
View full details

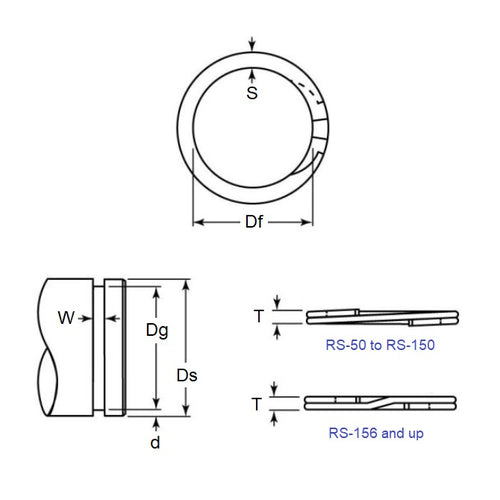

RS-150DiagramRS-150Image
