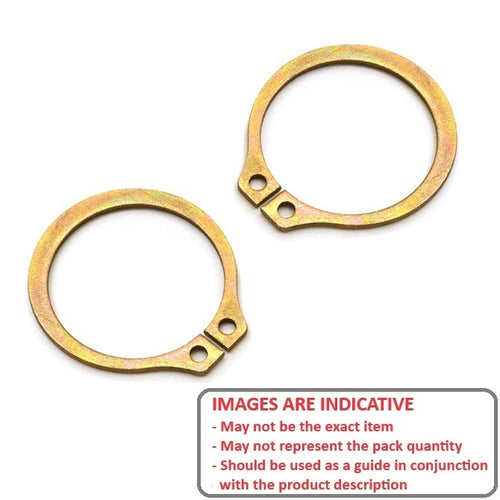

CCE-03500-CZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Shaft Diameter (Ds) : 35.00 mm
  (Equiv. 1.378 in.)
• Clip Thickness (T) 1.50 mm _{+ 0.00 / - 0.25}
  (Equiv. 0.059 in.)
• Groove Dia. (Dg) 33.00 mm _{+ 0.00 / - 0.06}
  (Equiv. 1.299 in.)
• Approx. Loose Circlip ID (A) 32.20 mm
• Groove Width (W) 1.60 mm
• Clearance on Shaft (C1) 46.80 mm
• Clearance in Groove (C1) 44.20 mm
• Min. Lug Diameter (h) 2.50 mm
• Min. Extension (n) 3.00
• Standard DIN471
• Material Carbon Steel Zinc Plated

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Anderton and Seeger Cross Reference PDF

• Circlips PDF Catalogue

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Ellison 471-035-ZC
• 90154A724
• Seeger A-035-ZC
• Seeger A35X1.5Z
• Bossard BN818-035-ZC
• Waldes D1400-035-ZC
• NoCor DSH-035-ZC
• Rotor Clip DSH-035-ZC
• A035ZC
• D1400-0350AZD
• D14000350AZD
• D1400035ZC
• BN818035ZC
• DSH035ZC
• 471035ZC
