CCI-03493-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

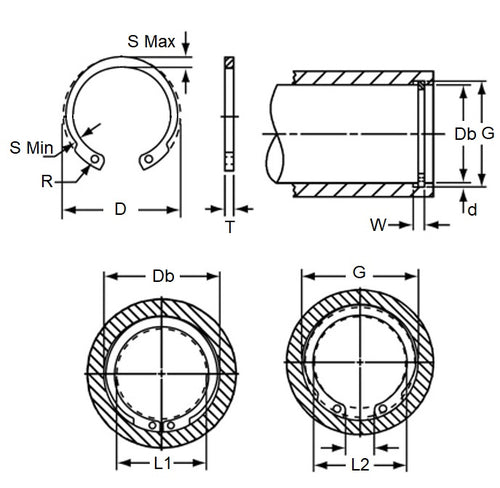

Product Data
- Housing Bore (B)
:
34.93
mm
(Equiv. 1.375 in.) - Clip Thickness (T)
1.27
mm
+/- 0.102
(Equiv. 0.05 in.) - Groove Dia. (Dg)
37.11
mm
+/- 0.052
(Equiv. 1.461 in.) - Approx. Loose Circlip OD (Dr) 38.76 mm
- Radial Wall Max (S) 1.65 - 3.43
- Groove Width (W) 1.42 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90442A649
- NoCor HOI-137
- HOI137
- N1308-0137
- N13080137
