COL-03175-052-13-1C-S4 - Datasheet

MBA

Category Information

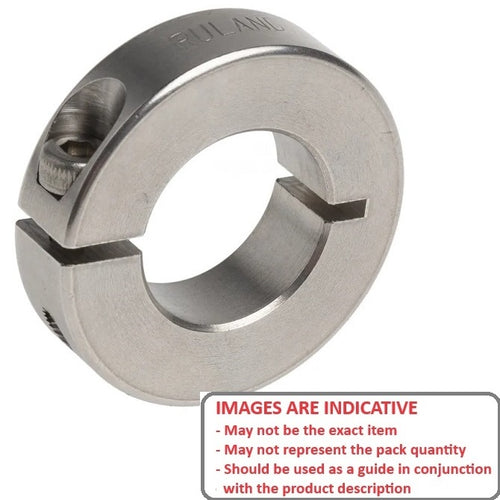

Collars - Shaft - Clamp Type - One Piece - Stainless Steel

Stainless Steel One Piece Clamp Type Shaft Collars. This is the main category in this series

  • Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
  • Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.

Product Data

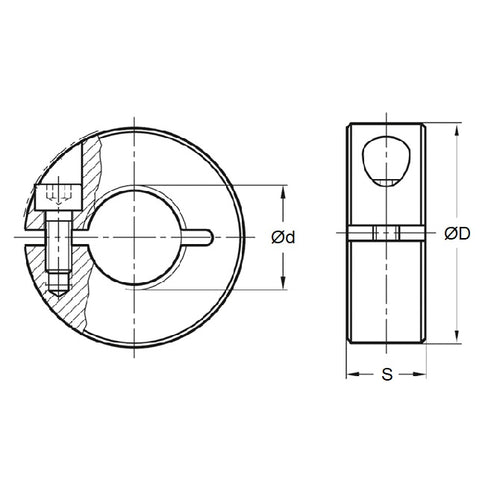

  • Suitable Shaft Size (d) : 31.750 mm
  • Outside Diameter (D) 52.39 mm
  • Overall Width (S) 12.7 mm
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Huyett® SC1-1250-SS
  • NoCor® SC1-1250-SS
  • SC11250SS
