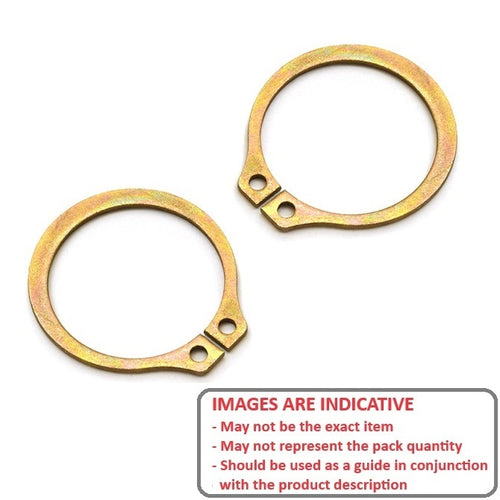

CCE-03000-CZ - Datasheet

MBA

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

• Shaft Diameter (Ds) : 30.00 mm
  (Equiv. 1.181 in.)
• Clip Thickness (T) 1.50 mm _{+ 0.00 / - 0.21}
  (Equiv. 0.059 in.)
• Groove Dia. (Dg) 28.60 mm _{+ 0.00 / - 0.06}
  (Equiv. 1.126 in.)
• Approx. Loose Circlip ID (A) 27.90 mm
• Groove Width (W) 1.60 mm
• Clearance on Shaft (C1) 40.50 mm
• Clearance in Groove (C1) 38.60 mm
• Min. Lug Diameter (h) 2.00 mm
• Min. Extension (n) 2.10
• Standard DIN471
• Material Carbon Steel Zinc Plated
