PFL-MXL-054-A - Datasheet
MBA
Category Information

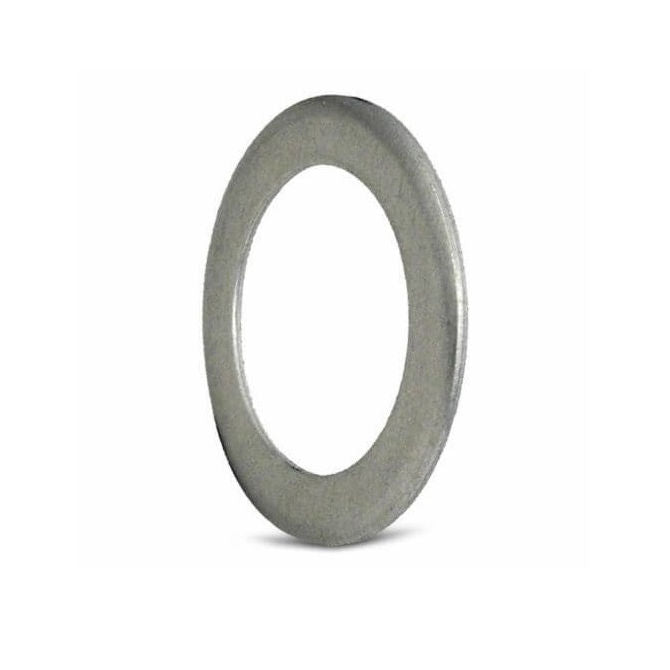

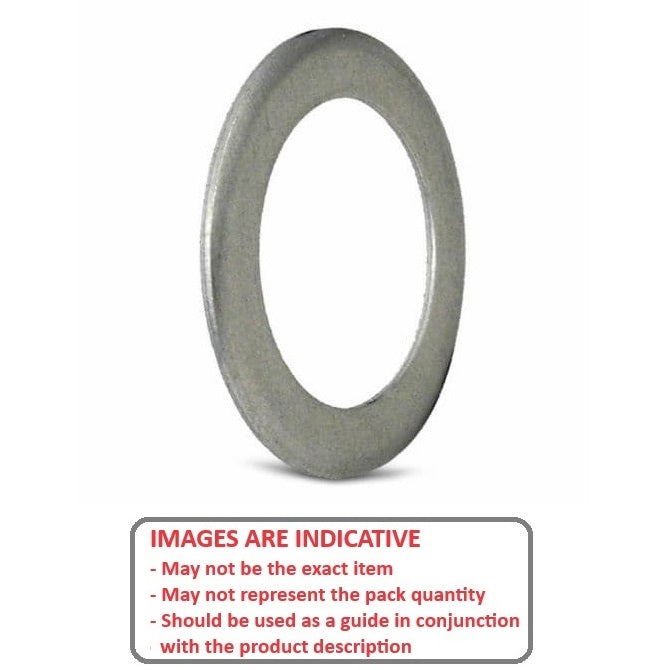

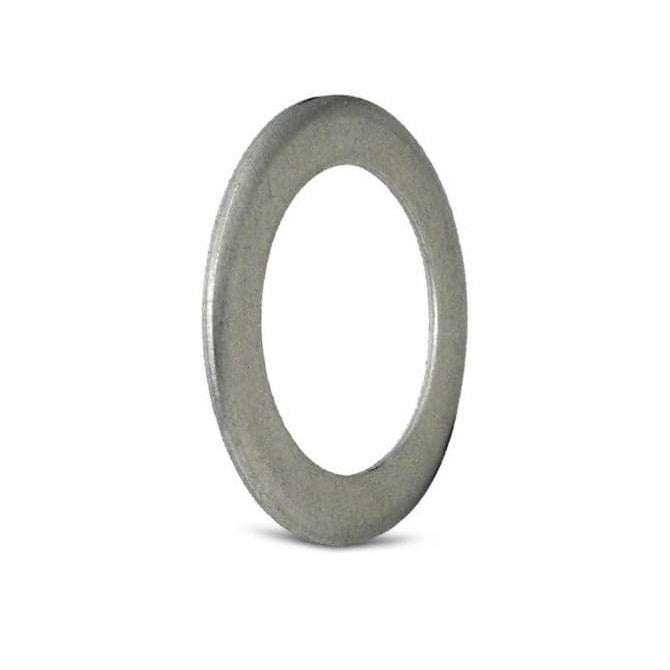

Pulley Flanges - Timing - Suit 2.032mm MXL and 40DP SeriesSuit 2.032mm MXL and 40DP Series Timing Pulley Flanges. Use with timing pulley stock to custom make your own pulleys
- Timing pulley flanges are available in aluminium and carbon steel, and suit the timing pulley stock sizes listed on this site.
- These flanges provide a quick low cost way to cap the sides of special size timing pulleys made from stock lengths, without having to machine special flanges in the design.
Product Data

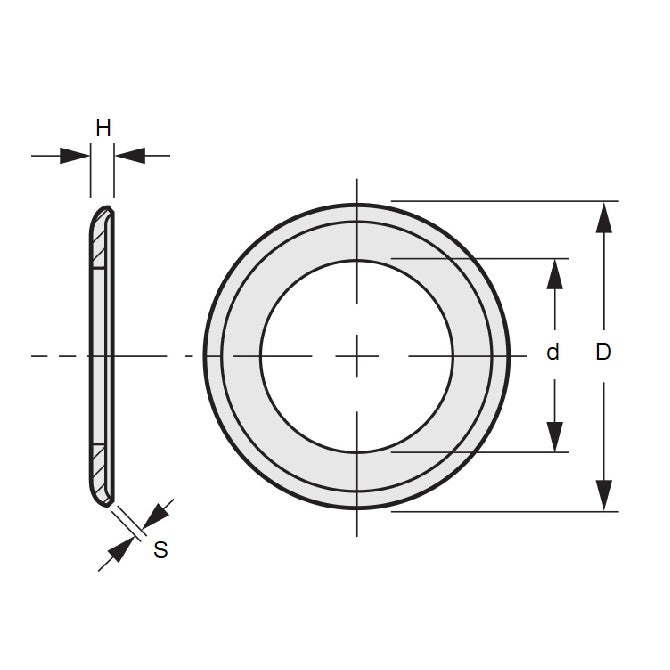

- Inside Diameter (d)
:
30.480
mm
(Equiv. 1.2 in.) - Outside Diameter (D)
40.001
mm
(Equiv. 1.575 in.) - Suits Pulley Grooves 54 No.
- Width (H) 1.52 mm
- Thickness (S) 1.02 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 54MP-FA
- A6A5-054FA
- A6A5054FA
- A6A5M054FA
- 54MPFA
