IP-263RS - Datasheet
MBA
Category Information

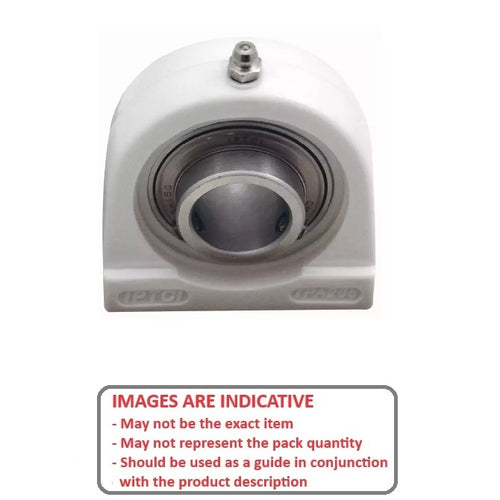

Housing and Bearing Assembly - Tapped Base - Thermoplastic and SteelThermoplastic and Chrome Steel Tapped Base Housing Assembly. Thermoplastic housed units offer a more favourable economic choice. Hard chrome inserts offer an intermediate level of corrosion resistance.
- Operating temperature minus 20 oC to +95 deg C
- Thermoplastic hosuings are offwhite and are made from glass reinforced PBT resin. Favourable chemical resistance. Very resistant to moisture absorption.
- Excellent mechanical, thermal and electrical properties.
- All sleeves, bushings and grease fittings are 300 grade stainless steel.

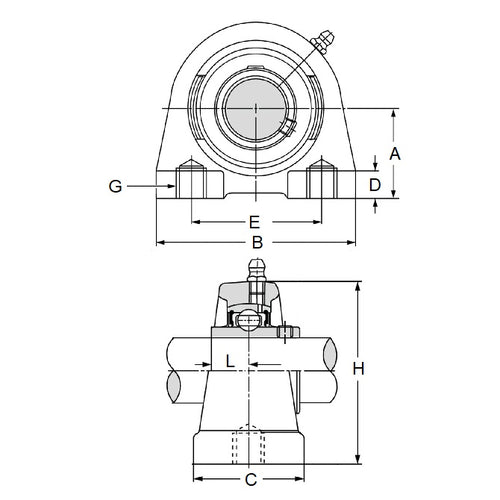

Product Data
- Bore
:
30.000
mm
(Equiv. 1.181 in.) - Centre Height (A)
42.900
mm
(Equiv. 1.689 in.) - Width (B)
102.000
mm
(Equiv. 4.016 in.) - Depth (C) 43.000 mm
- Bolt Depth (D) 13.000 mm
- Bolt Distances (E) 76.200 mm
- Thread (G) UNC
- K 84.000 mm
- L 22.200 mm
