PBC-625RS - Datasheet
MBA
Category Information

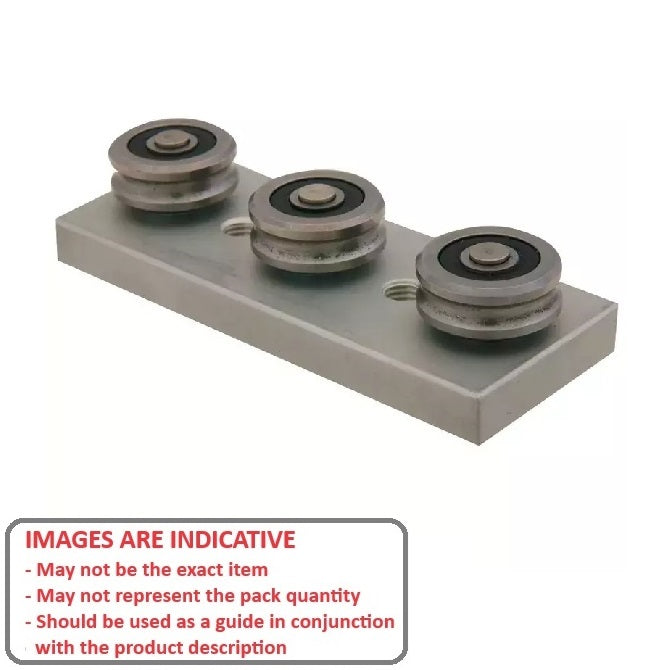

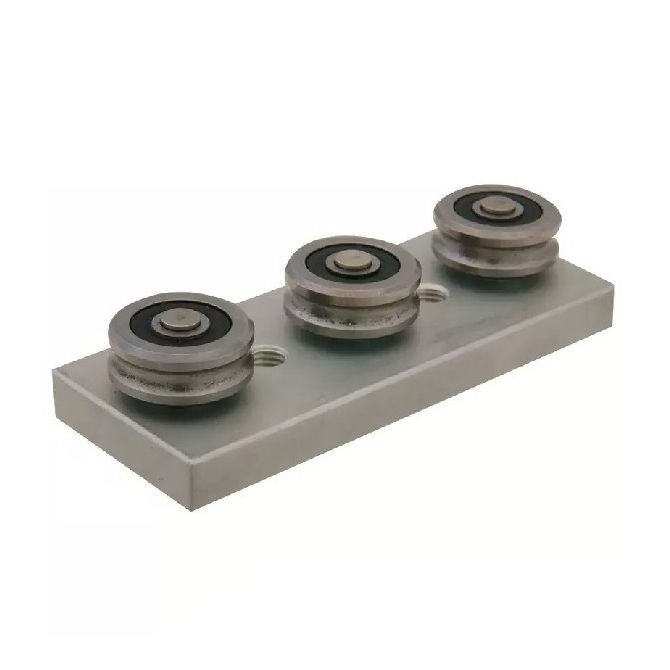

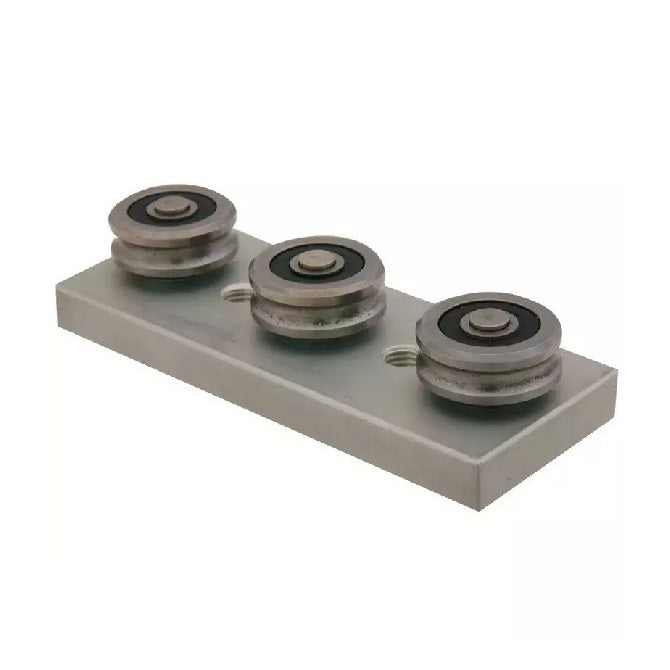

Linear - Redi-Rail Roller GuidesRedi-Rail Roller Guides Linear. Match carriage and rail by rail widh
- Easy to use system can be installed into many applications including packaging, material handling, automation and assembly equipment.
- A complete unit consists of a roller guide and rail (sold separately). The roller guide is made from 6061-T6 aluminium base with 3 rollers.
- Rollers made from 52100 hardened steel, lubricated and sealed.
- Rail made from 6061-T6 aluminium with hardened and ground steel raceways for the rollers to run on.

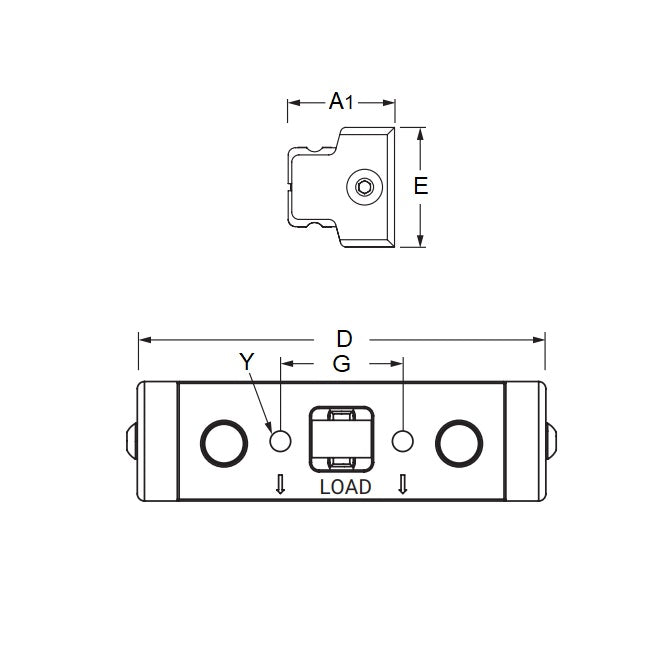

Product Data
- Suitable Rail Width (B)
:
30.0
mm
(Equiv. 1.181 in.) - Overall Height (A)
28.0
mm
(Equiv. 1.102 in.) - Length (D)
86.000
mm
(Equiv. 3.386 in.) - Rail Width (E) 25.400 mm
- Mounting Hole (G) 26.000 mm
- Thread Size (Y) M5 x 0.80
Product Compliance and Data
Additional Resources
Cross References
- Pacific RRS30
