ECL-0029-0040A-S15 - Datasheet
MBA
Category Information

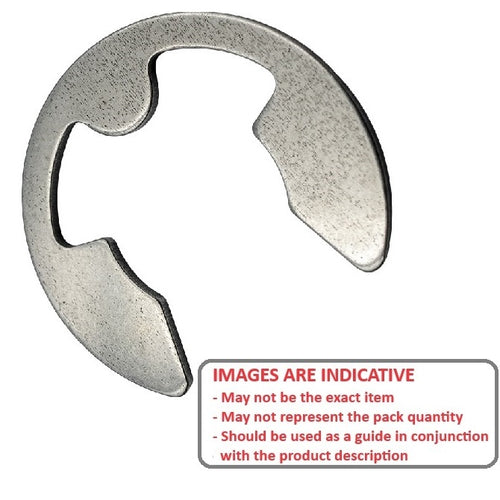

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.

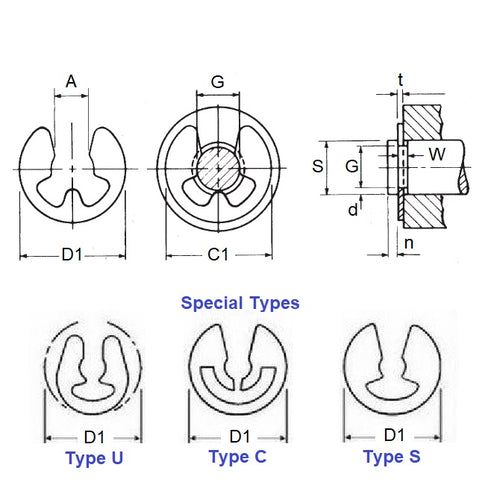

Product Data
- Minimum Rec. Shaft Dia (S)
:
3.97
mm
+ 1.26 / - 0.00
(Equiv. 0.156 in.) - Groove Dia. (Dg)
2.95
mm
+ 0.051 / - 0.000
(Equiv. 0.116 in.) - Clip Thickness (T)
0.64
mm
+/ - 0.050
(Equiv. 0.025 in.) - Clip OD Loose (D1) 7.16 mm
- Groove Width (W) 0.74 mm
- Maximum Rec. Shaft Dia (S) 5.23
- Clip OD in groove (C1) 7.49 mm
- Min. Extension (n) 1.00
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
