CNG-00300-C - Datasheet
MBA
Category Information

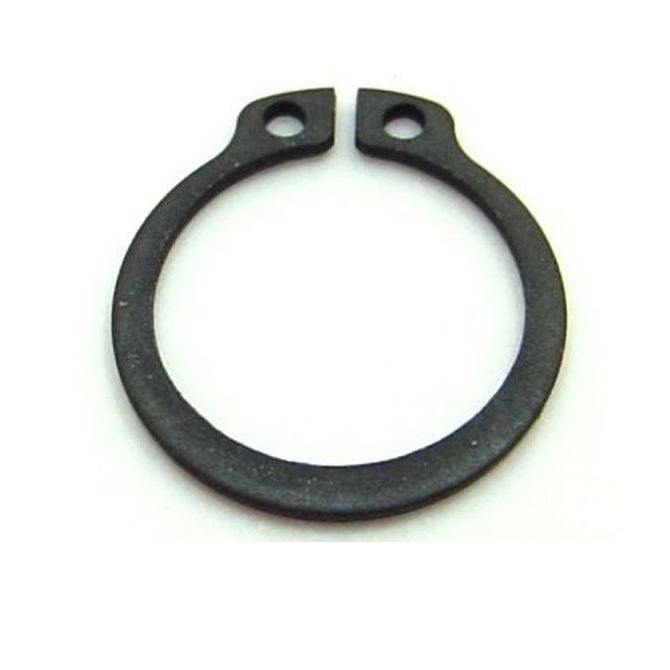

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

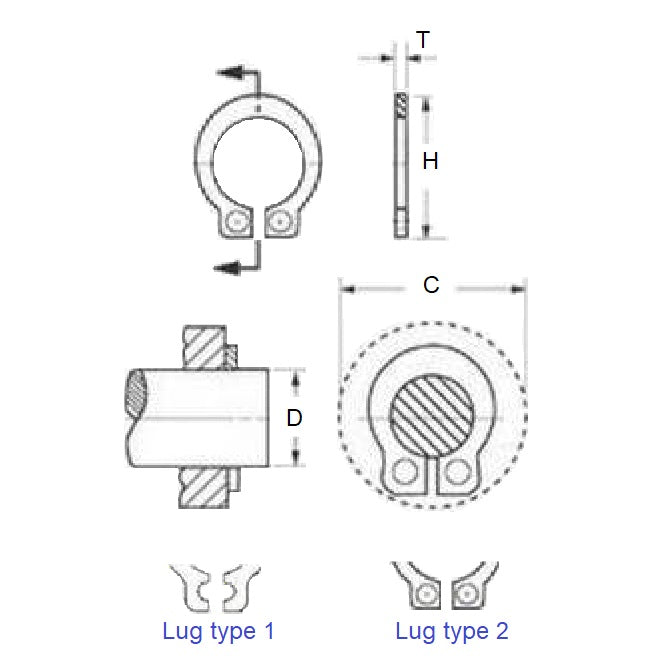

- Shaft Diameter (Ds)
:
3.00
mm
+/- 0.06
(Equiv. 0.118 in.) - Clip Thickness (T)
0.60
mm
(Equiv. 0.024 in.) - Approx. Loose Circlip ID (A) 2.84 mm
- Assemb. Clearance on Shaft (C) 7.40
- Allowable Load 73 N

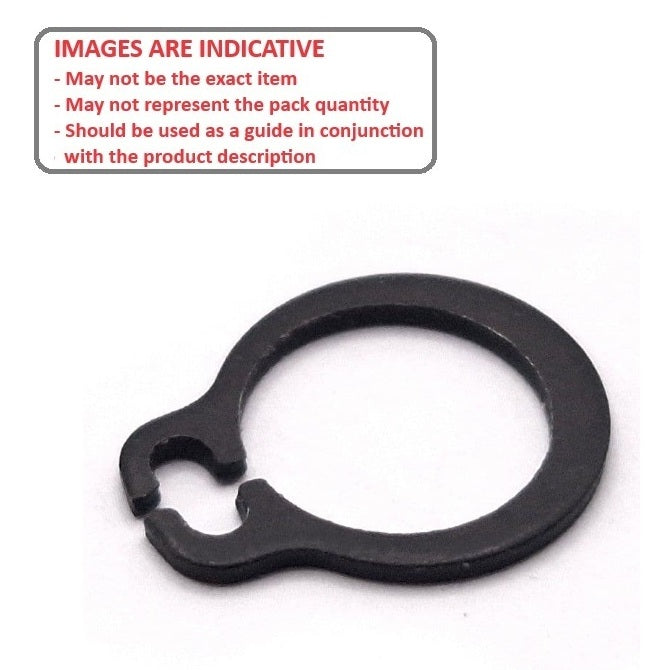

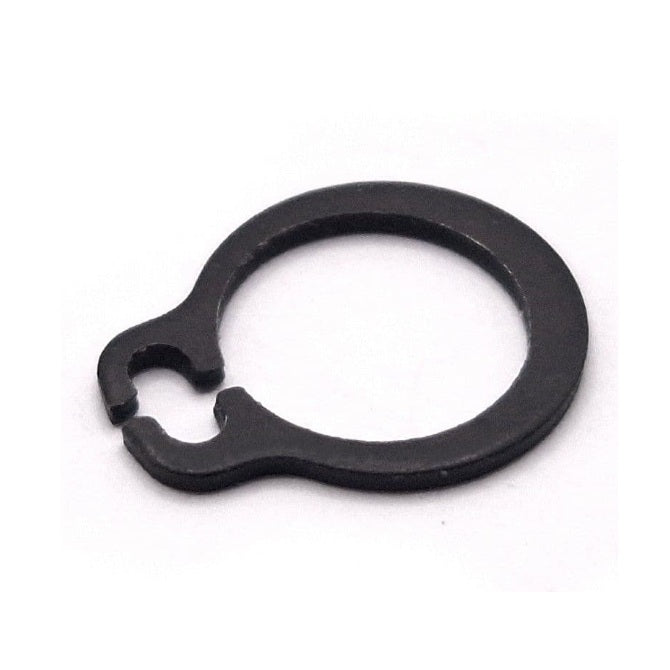

- Lug Type 1 (Open) mm
- Tool PRS-ZGG0
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHX-003
- N14400011
- N1440-0011
- DSHX003
- M14400030
- M1440-0030
