LSAG2-C - Datasheet

MBA

Category Information

Linear - Ball Spline Bearings Unflanged

Ball Spline Bearings Unflanged Linear. Use with Linear Ball Spline Shaft.

  • This category will be discontinued when this item is sold.
  • This item is priced to quit.
  • Backorders or orders for previously listed items in the category will only be available for very large orders.

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

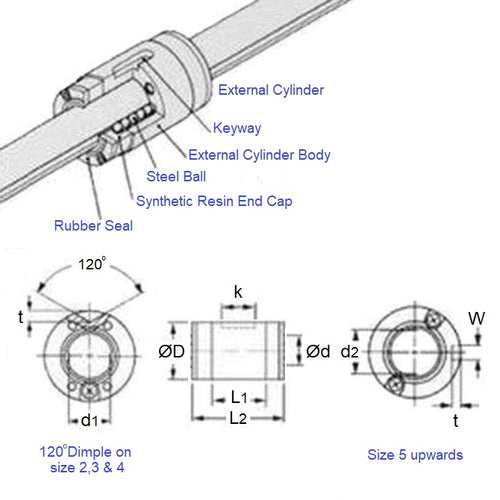

  • Suitable Shaft Diameter (d) : 2.00 mm
    (Equiv. 0.079 in.)
  • Bearing OD (D) 6.00 mm
    (Equiv. 0.236 in.)
  • Bearing Length (L1) 8.50 mm
    (Equiv. 0.335 in.)
  • Main Body Length (L2) 4.70 mm
  • Indent Width (d2) 1.20 mm
  • Basic Load Rating (Dyn/Stat.) 222 / 237 CN / CoN
  • Seals None
  • Keyway ( W x t x k ) t = 0.7 mm
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • IKO LSAG2C1R50
