CCI-02800-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

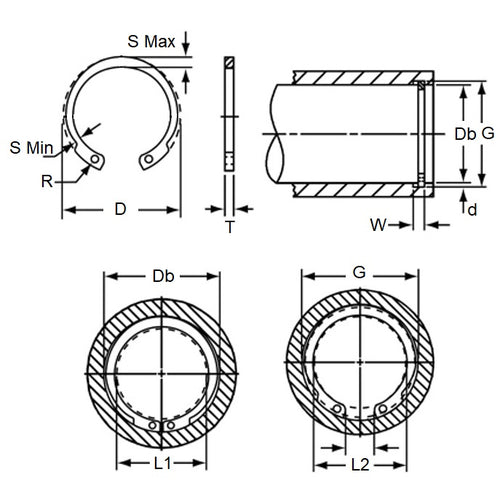

Product Data
- Housing Bore (B)
:
28.00
mm
(Equiv. 1.102 in.) - Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.) - Groove Dia. (Dg)
29.40
mm
+ 0.00 / - 0.06
(Equiv. 1.157 in.) - Approx. Loose Circlip OD (Dr) 29.65 mm + 0.50 / - 0.25
- Radial Wall Max (S) 3.1 - 3.2
- Groove Width (W) 1.30 mm
- Tool PRS-I011
- Material Carbon Steel
