CCI-02700-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.
Product Data

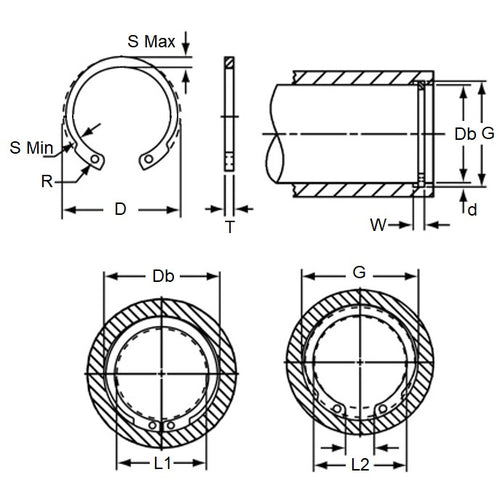

- Housing Bore (B)
:
27.00
mm
(Equiv. 1.063 in.) - Clip Thickness (T)
1.20
mm
+ 0.21 / - 0.00
(Equiv. 0.047 in.) - Groove Dia. (Dg)
28.40
mm
+ 0.00 / - 0.06
(Equiv. 1.118 in.) - Approx. Loose Circlip OD (Dr) 29.10 mm + 0.42 / - 0.21
- Radial Wall Max (S) 2.9 - 3.1
- Groove Width (W) 1.30 mm
- Tool PRS-I011
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-027
- Bossard BN830-028
- Ellison INTV-027
- Ellison INTV-028
- Seeger JV-027
- Seeger JV-028
- NoCor MDHOI-027
- NoCor MDHOI-028
- MDHOI027
- MDHOI028
- JV028
- JV027
- INTV028
- INTV027
- M1308028
- M1308027
- M1308-027
- M13080270APP
- M1308-0270APP
- M1308-028
- BN830028
- BN830027
