IDC-167RS - Datasheet
MBA
Category Information

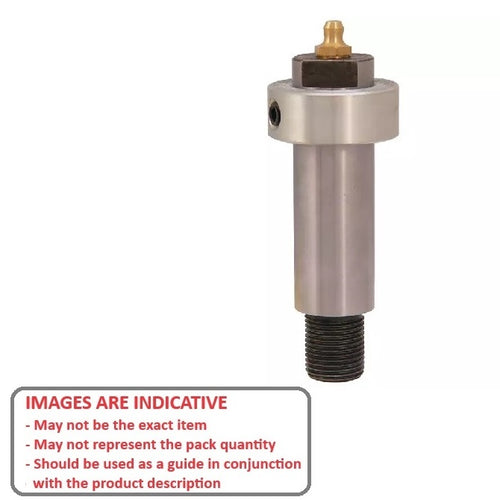

Idler ShaftsIdler Shafts. Ready made precision ground idler shafts.
- An expanded range may be available on special order. Please enquire.
- Internal grease hole can be accessed by drilling if required
- Use with your idler pulleys.
- Can be used with the idler tensioners listed on this site or use in your own design.

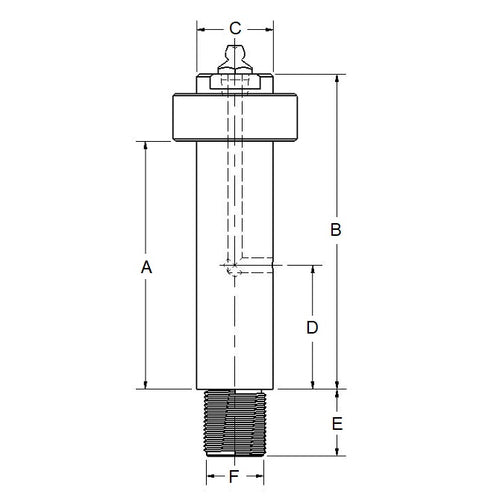

Product Data
- Shaft Length (A)
:
26.975
mm
(Equiv. 1.062 in.) - Diameter (C)
12.700
mm
(Equiv. 0.5 in.) - Thread Size 3/8-16
- Overall Length (B) 38.100 mm
- Base to grease hole depth (D) 9.525 mm
- Thread Length (E) 11.100 mm
- Approx Weight 0.07 Kg
- Material Carbon Steel
