CCE-02500-CZ - Datasheet
MBA
Category Information

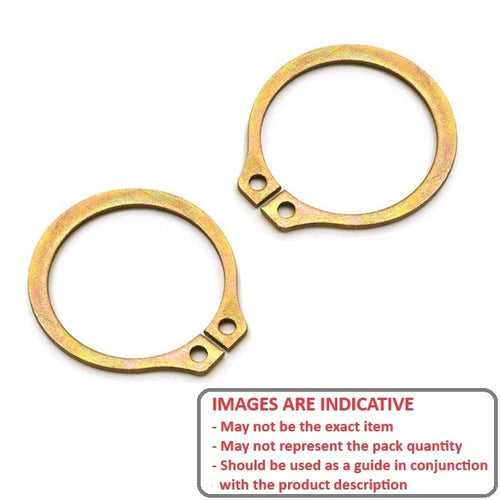

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds) : 25.00 mm
- Clip Thickness (T)
1.20
mm
+ 0.00 / - 0.06
(Equiv. 0.047 in.) - Groove Dia. (Dg)
23.90
mm
+ 0.00 / - 0.21
(Equiv. 0.941 in.) - Approx. Loose Circlip ID (A) 23.20 mm
- Groove Width (W) 1.30 mm
- Clearance on Shaft (C1) 34.20 mm
- Clearance in Groove (C1) 32.70 mm
- Min. Lug Diameter (h) 2.00 mm
- Min. Extension (n) 1.70
- Standard DIN471
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Ellison® 471-025-ZC
- 90154A569
- Seeger® A-025-ZC
- Seeger® A25X1.2Z
- Bossard® BN818-025-ZC
- Waldes® D1400-025-ZC
- Huyett® DSH-025-ZC
- NoCor® DSH-025-ZC
- Rotor Clip® DSH-025-ZC
- BN818025ZC
- A025ZC
- D1400025ZC
- 471025ZC
- DSH025ZC
