IP-216RS - Datasheet
MBA
Category Information

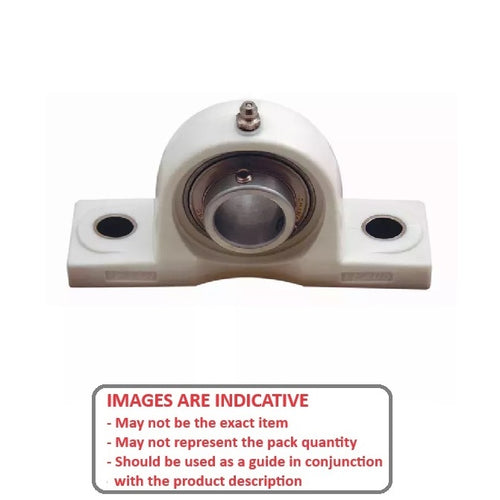

Housing and Bearing Assembly - Pillow Block - Thermoplastic and SteelThermoplastic and Chrome Steel Pillow Block Housing Assembly. Thermoplastic housed units offer an economical alternative with good chemical and washdown resistance.
- Thermoplastic housings are off-white and are made from glass reinforced PBT resin.
- Excellent mechanical, thermal and electrical properties.
- Operational temperature -20 to +100 oC
Product Data
- Inside Diameter
:
25.400
mm

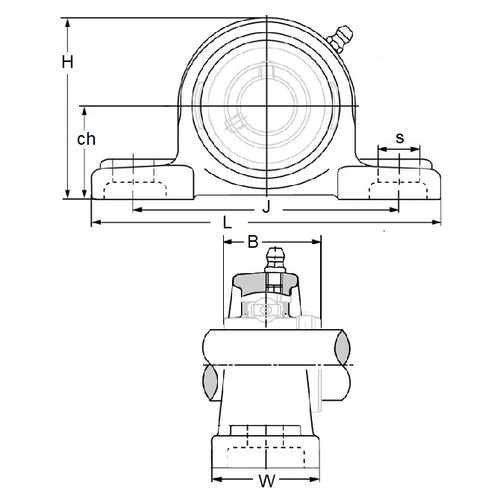

(Equiv. 1 in.) - Centre Height (A)
36.500
mm
(Equiv. 1.437 in.) - Length (B)
139.700
mm
(Equiv. 5.5 in.) - Width (C) 38.100 mm
- Foot Height (D) 14.280 mm
- Bolt Centres (E) 104.775 mm
- Bolt Hole Size (G) 14.275 mm
- Height (H) 71.438 mm
- K 14.300 mm
- L 19.700 mm
