MB2-0025-195 - Datasheet
MBA
Category Information

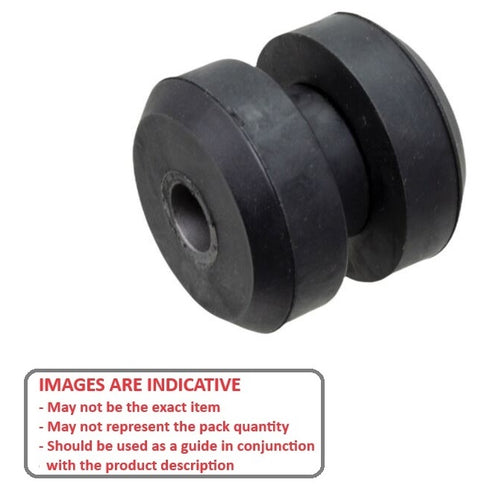

Mounts - Bonded - Tee Bush Two PieceTee Bush Two Piece Bonded Mounts. Steel insert overcoated with rubber joins the two pieces.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nominal Load rating : 195 Kg
- Bolt Hole Dia
23.8
mm

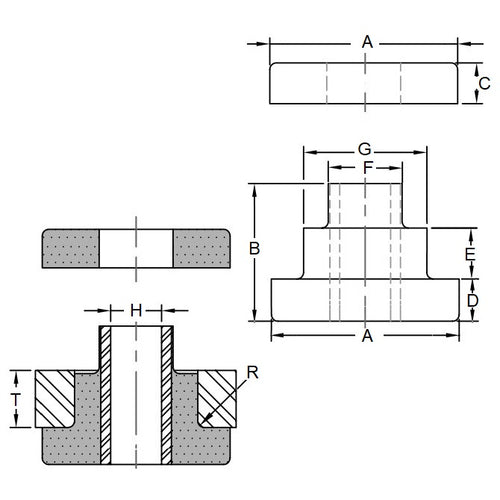

(Equiv. 0.937 in.) - Flange Dia (A)
88.9
mm
(Equiv. 3.5 in.) - Main Flange Width (D) 25.4 mm
- Support Flange Width (C) 25.4 mm
- Main Part Length (B) 73.7 mm
- Shoulder Length (E) 25.4 mm
- Insert Dia. (F) 34.8 mm
- Shoulder Dia. (G) 58.4 mm
- R 3.0 mm
- Material Rubber
Product Compliance and Data
Additional Resources
Cross References
- VM1905
- VM-190-5
