ED3RS - Datasheet

ACE

Category Information

Shock Absorbers - Small Hydraulic Adjustable

Small Hydraulic Adjustable Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 25.4 mm
      (Equiv. 1 in.)
    • Thread (C) 1.3/8-12 UNF
    • Type Spring
    • Length (A/F) 155.45 / 96.77 mm
    • Shaft Diameter (D) 10 mm
    • Max. Shock Force 1134 KG
    • Max. Propelling Force 227 KG
    • Nom. Coil Spring Force Exten 4 KG
    • Nom. Coil Spring Force Compres 6 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • ED-3
      • ED3
      View full details

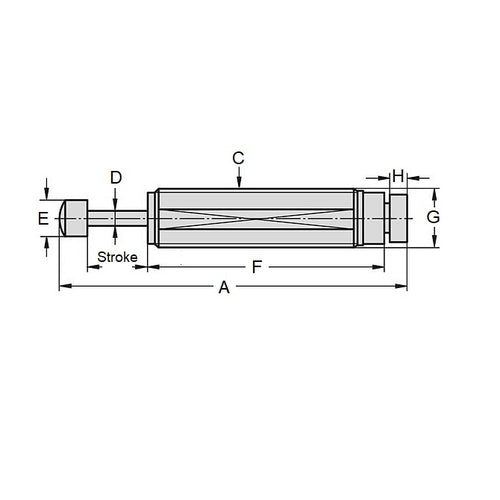

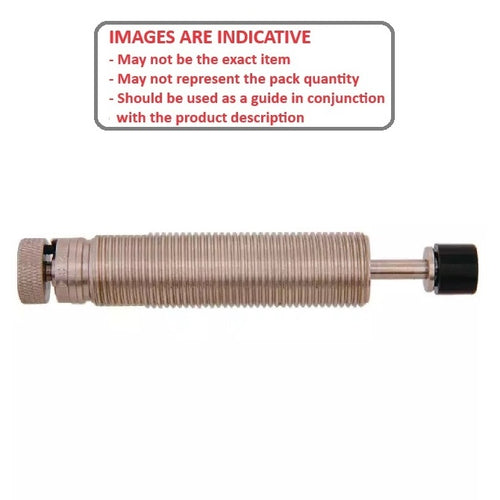

      ED3RSDiagramED3RSImage
