Category Information

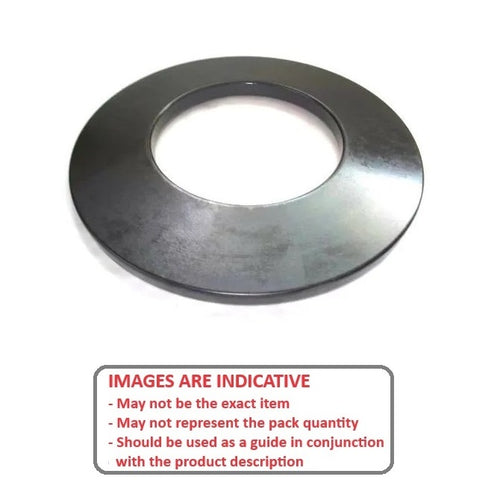

Washers - Disc Spring - Standard - Carbon SteelCarbon Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093.
- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data

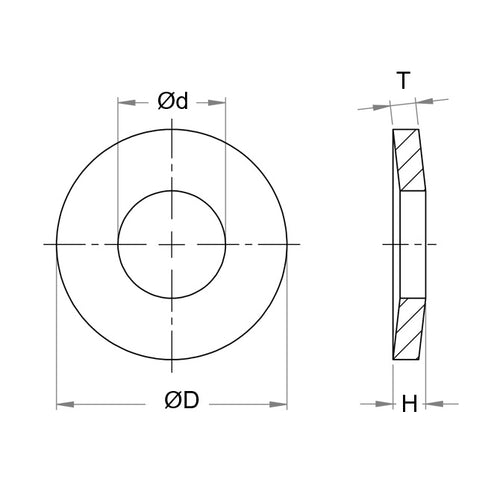

- Nominal Outside Diameter (A)
:
25.00
mm
+ 0.00 / - 0.18
(Equiv. 0.984 in.) - Nominal Inside Diameter (B)
12.20
mm
+ 0.18 / - 0.00
(Equiv. 0.48 in.) - Stock Thickness (C)
0.900
mm
(Equiv. 0.035 in.) - Load at L1 868.00 kg
- Free Height (E) 1.60 mm
- Inside Height (D) 0.70 mm
- Material Carbon Spring Steel 50CrVA
