Washers - Disc Spring - Standard - Stainless SteelStainless Steel Standard Disc Spring Washers. Includes disc springs to DIN 2093 and belleville washers to DIN 6796.

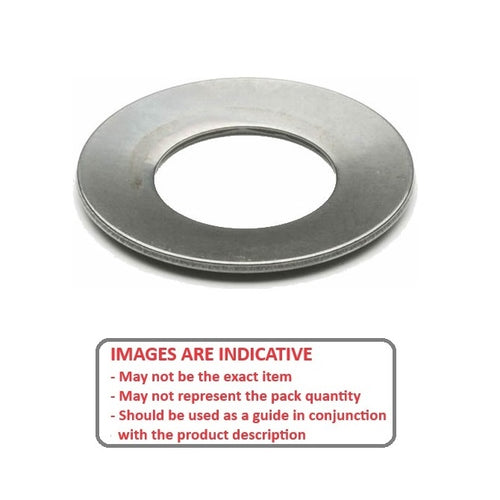

- Disc spring washer, also known as a Belleville washer, is a conical-shaped washer designed to act as a spring.
- Provides a high spring force within a small space and can be stacked in various configurations to adjust load and deflection characteristics.
- Washers are used to add vibration resistance, preload to bolted assemblies, and to compensate for material expansion or contraction.
- Manufactured under strict quality control to conform to DIN 2093.
Product Data
Deleted Item. Available while stocks last. Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

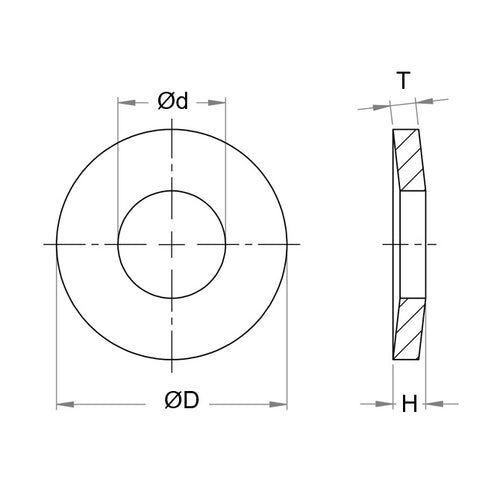

- Nominal Outside Diameter (A)
:
23.00
mm
(Equiv. 0.906 in.) - Nominal Inside Diameter (B)
10.00
mm
+ 0.20 / - 0.00
(Equiv. 0.394 in.) - Stock Thickness (C)
1.00
mm
(Equiv. 0.039 in.) - Loaded Height (L1) 1.17 mm
- Load at L1 132.0 kg
- Load at 0.75 Height 146.7 Kg
- Free Height (E) 1.70 mm
- Actual ID (Ref) 10.2 mm
- Inside Height (D) 0.70 mm
- Material Stainless Steel 17-7 PH
Product Compliance and Data
Additional Resources
Cross References
- WASCA DS231010SS
- BDA485
- BDA-485
- S4279SS
