CCI-02223-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

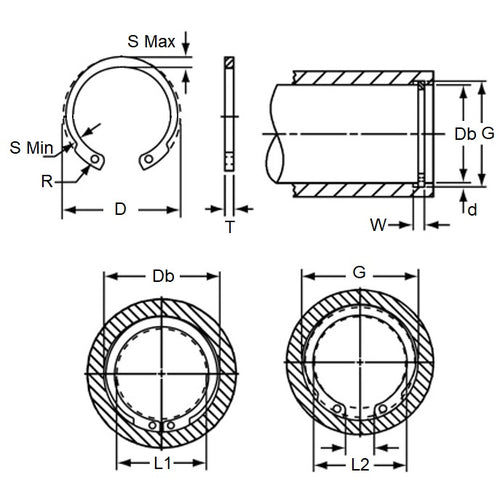

Product Data
- Housing Bore (B)
:
22.23
mm
(Equiv. 0.875 in.) - Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.) - Groove Dia. (Dg)
23.65
mm
+/- 0.052
(Equiv. 0.931 in.) - Approx. Loose Circlip OD (Dr) 23.98 mm
- Radial Wall Max (S) 1.19 - 2.51
- Groove Width (W) 1.17 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90442A371
- N1308-0087
- N13080087
