CCE-02064-C-V - Datasheet
MBA
Category Information

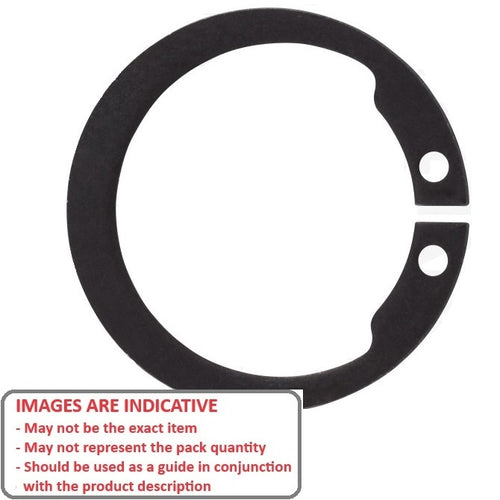

Retaining Rings - External - Circlips - InvertedInverted Circlips External Retaining Rings. N1408 / SHI / 16626 / 4100 / 5108 - Spring Steel and Stainless Steel. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Tapered section ring with lugs inverted on the ID to allow use in tight areas with minimal clearance.
- Less thrust load than standard circlips.
Product Data

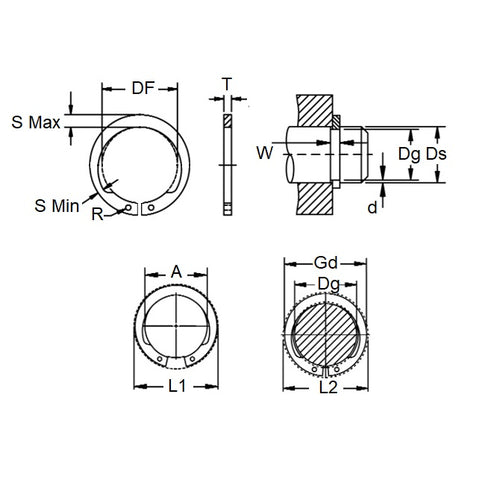

- Shaft Diameter (Ds)
:
20.64
mm
(Equiv. 0.813 in.) - Clip Thickness (T)
1.07
mm
+/- 0.076
(Equiv. 0.042 in.) - Groove Dia. (Dg)
19.35
mm
+/- 0.051
(Equiv. 0.762 in.) - Approx. Loose Circlip ID (A) 19.10 mm
- Radial Wall (S) min/max 1.52 mm
- Groove Width (W) 1.17 mm + 0.08 / - 0.00
- Tool PRS-E047
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor SHI-081
- N1408-0081
- N14080081
- SHI081
