CNG-00250-C - Datasheet
MBA
Category Information

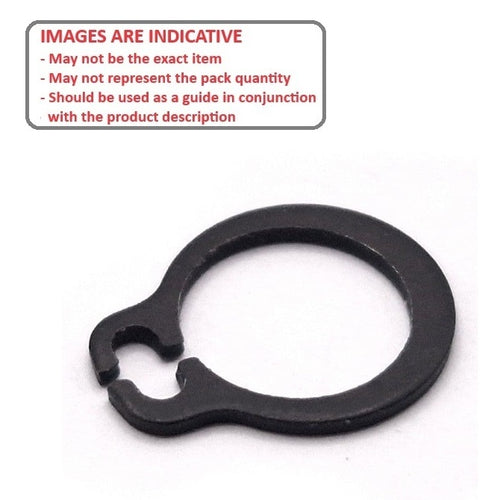

Retaining Rings - External - Circlips - GroovelessGrooveless Circlips External Retaining Rings. Includes MIL-R-21248/MS 90707 - Styles M1440 / Ellison GR / Seeger G and GA. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Reusable tapered section rings for grooveless shafts like plastics, tubes or castings.
- Can be used where adjustable ring placement is desired - like progressively tightening a compression spring.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

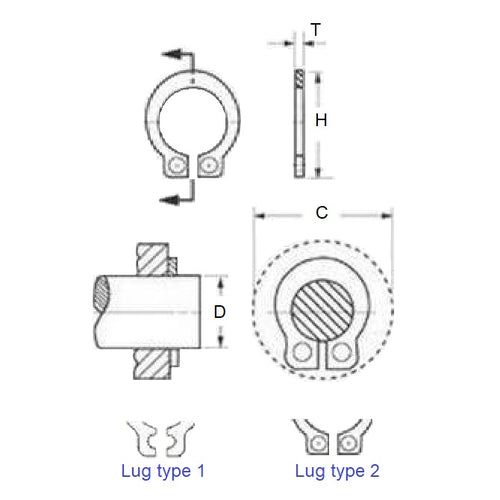

- Shaft Diameter (Ds)
:
2.50
mm
+ 0 / - 0.025
(Equiv. 0.098 in.) - Clip Thickness (T)
0.60
mm
(Equiv. 0.024 in.) - Approx. Loose Circlip ID (A) 2.35 mm
- Assemb. Clearance on Shaft (C) 6.50
- Allowable Load 60 N
- Lug Type 1 (Open) mm
- Tool PRS-ZGG0
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSHX-0025
- DSHX0025
