ECL-0018-0024A-S15 - Datasheet
MBA
Category Information

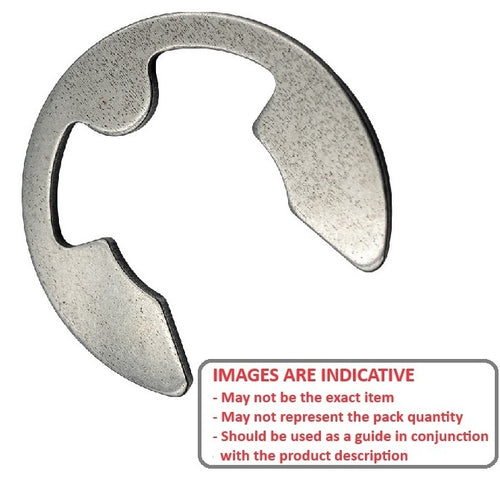

Retaining Rings - E-Clips - Basic - Stainless SteelStainless Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Stainless Steel PH15-7 Mo.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.

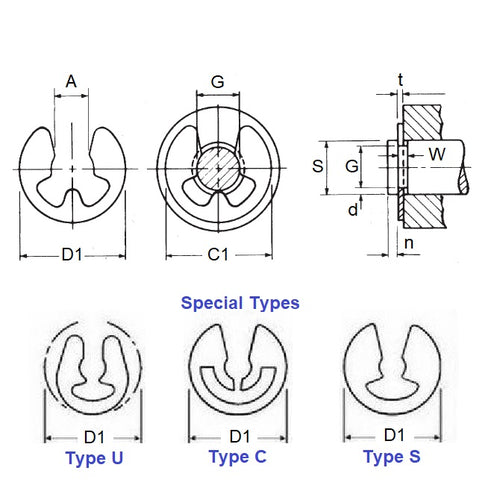

Product Data
- Minimum Rec. Shaft Dia (S)
:
2.39
mm
+ 0.76 / - 0.00
(Equiv. 0.094 in.) - Groove Dia. (Dg)
1.88
mm
+ 0.051 / - 0.000
(Equiv. 0.074 in.) - Clip Thickness (T)
0.38
mm
+/ - 0.025
(Equiv. 0.015 in.) - Clip OD Loose (D1) 4.75 mm
- Groove Width (W) 0.46 mm
- Maximum Rec. Shaft Dia (S) 3.15
- Clip OD in groove (C1) 5.08 mm
- Loose Clip ID (A) 1.85 mm
- Standard MIL-16633
- Material Stainless Steel Grade PH15-7 Mo
Product Compliance and Data
Additional Resources
Cross References
- Waldes 5133-009-SS
- 98408A114
- Ellison E-009-SS
- NoCor E-009-SS
- Rotorclip E-009-SS
- E009SS
- 5133009SS
- N1500-009-SS
- N15000009KSF
- N1500009SS
- N1500-0009KSF
