CCI-01900-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

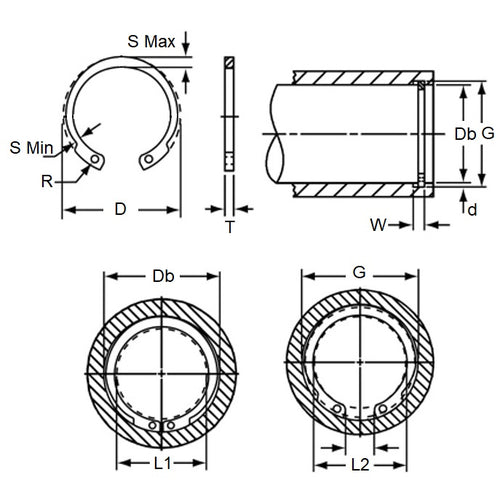

Product Data
- Housing Bore (B)
:
19.00
mm
(Equiv. 0.748 in.) - Clip Thickness (T)
1.00
mm
+ 0.15 / - 0.00
(Equiv. 0.039 in.) - Groove Dia. (Dg)
20.00
mm
+ 0.00 / - 0.06
(Equiv. 0.787 in.) - Approx. Loose Circlip OD (Dr) 20.50 mm + 0.42 / - 0.13
- Radial Wall Max (S) 2.1 - 2.2
- Groove Width (W) 1.10 mm
- Tool PRS-I011
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Bossard BN830-019
- Ellison INTV-019
- Seeger JV-019
- NoCor MDHOI-019
- MDHOI019
- JV019
- INTV019
- M1308-0190APP
- M1308019
- M13080190APP
- BN830019
