CCI-01905-C-V - Datasheet
MBA
Category Information
Retaining Rings - Internal - Circlips - InvertedInverted Circlips Internal Retaining Rings. M1308 / JV / INTV / BN830. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Inverted lugs seat into the groove for better clearance and cleaner appearance.
- Good for shielded bearings that pass tightly through the bore or housing.
- Use recommended installation pliers.

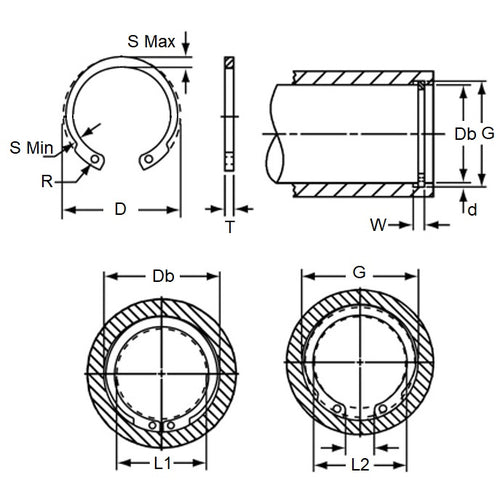

Product Data
- Housing Bore (B)
:
19.05
mm
(Equiv. 0.75 in.) - Clip Thickness (T)
0.89
mm
+/- 0.050
(Equiv. 0.035 in.) - Groove Dia. (Dg)
20.22
mm
+/- 0.052
(Equiv. 0.796 in.) - Approx. Loose Circlip OD (Dr) 21.11 mm
- Radial Wall Max (S) 1.07 - 2.16
- Groove Width (W) 0.99 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 90442A346
- NoCor HOI-072
- HOI072
- N1308-0075
- N13080075
